2005-2013 Corvette C6 Base Wilwood SLC56 Front 12.8" Drilled Brake Kit Black

2005-2013 Corvette C6 Base Wilwood SLC56 Front 12.8

$1,299.99

Model: WIL140-17671-D Manufacturers: Willwood

Qty:

Reviews

Add to Wish List

Description

2005-2013 Corvette C6 Base Wilwood SLC56 Front 12.8" Drilled Brake Kit Black

KIT,FRONT,SLC5/6,VETTE 05-13,C6 BASE 12.80 ROTOR,SRP,BLACK,W/PADS & LINES

SLC56 front caliper, pad, and rotor kits are engineered as high performance street and custom show replacements for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the SLC56 calipers, 12.8” diameter SRP series dimpled and slotted e-coat rotors, and the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits bolt directly to the front spindle of any model C5 or C6 from 1997-2013, without the need for additional brackets or adapters.

Specifications

Spindle Type:	Factory Disc Spindle
Mount Type:	Lug
Caliper Type:	4 - Black Powder Coat
Rotor Diameter:	12.80
Min Wheel Diameter Req'd*:	17
UPC	889545116519

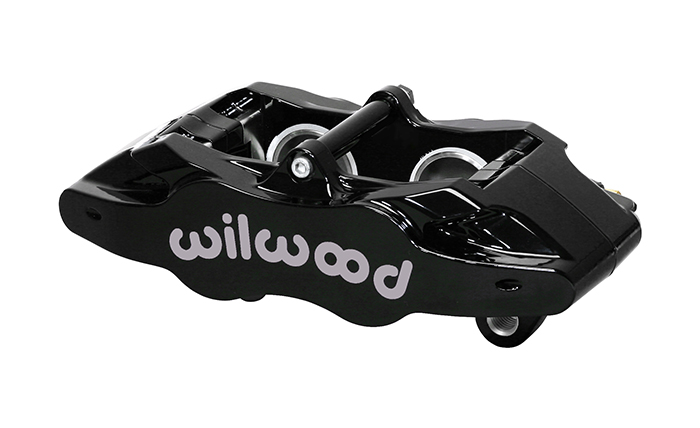

Left Hand - Part No:	120-13915-BK
Right Hand - Part No:	120-13915-BK
Type:	SLC56
Finish Color:	Black Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.62
Piston 2 Bore (in):	1.62
Piston Area (In²):	4.12
Piston Type:	Stainless
Brake Pad Plate:	7416
Brake Pad Area (In²):	8.2
Brake Pad Volume (In³):	3.8
Pad Compound:	BP-10
Left Hand - Part No:	160-14043-BK
Right Hand - Part No:	160-14042-BK
Type:	SRP Drilled Rotor & Hat
Style:	SRP Dimpled & Slotted
Surface Finish:	Black Electro Coat
Material:	Iron
Outside Diameter (in):	12.80
Width (in):	1.25
Vane Count:	Vented
Design Type:	SRP-BLK
Burnished:	No
O-ring Kit:	130-4346
Replacement Dustboot:	N-A
Replacement Piston 1:	200-7520
Replacement Piston 2:	200-7520
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-6595
Wear Plate - Right Hand:	300-6596
Pad Retainer:	N-A
Bleed Screw Kit:	220-0627
Front Line Kit:	220-15194

140-17671-D Black Calipers 12.80-inch Rotors Drilled & Slotted Rotors; 140-17671-DR Red Calipers 12.80-inch Rotors Drilled & Slotted Rotors; Each listed SKU has its own final price; no surcharge added
