JL AUDIO C2-350x 3.5-in Coaxial Speaker Upgrade, C6 Corvette Front Door

JL AUDIO C2-5350: 3.5-inch (90 mm) Coaxial Speaker System, C6 Corvette Front Door. PAIR

Used to replace the Stock C6 Corvette Front Door Speaker. requires 1- Pair of Metra 72-4568 GM Speaker Connectors. Direct replacement for Stock Door Speakers.

Coaxial Speaker System: 3.5-inch (90 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter

The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.

The C2-350x system features 3.5-inch (90 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.

Speaker grilles are not available for this speaker system.

Sonic character: Clean and Dynamic

Sold as a pair.

Continuous Power Handling (RMS)  25 W
Peak Music Power  75 W
Recommended RMS Amplifier Power (per Ch.)  10 - 40 W
System Efficiency  83 dB @ 1 W / 1 m
System Nominal Impedance  4 Ω
System Frequency Response  130 Hz - 22 KHz ± 3 dB

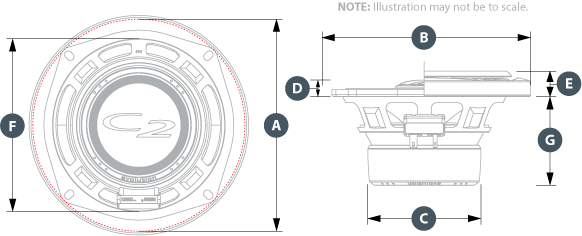

Frame Outer Diameter* (A)  3.44 in / 87 mm
Grille Tray Outer Diameter (B)  N/A
Magnet Outer Diameter (C)  2.36 in / 60 mm
Frontal Coaxial Tweeter Protrusion** (D)  0.54 in / 14 mm
Frontal Grille Protrusion (E)  N/A
Mounting Hole Diameter (F)  3.19 in / 81 mm
Mounting Depth (G)  1.50 in / 38 mm

*Does not take into account mounting tabs
**Frontal coaxial tweeter protrusion measured from mounting surface
