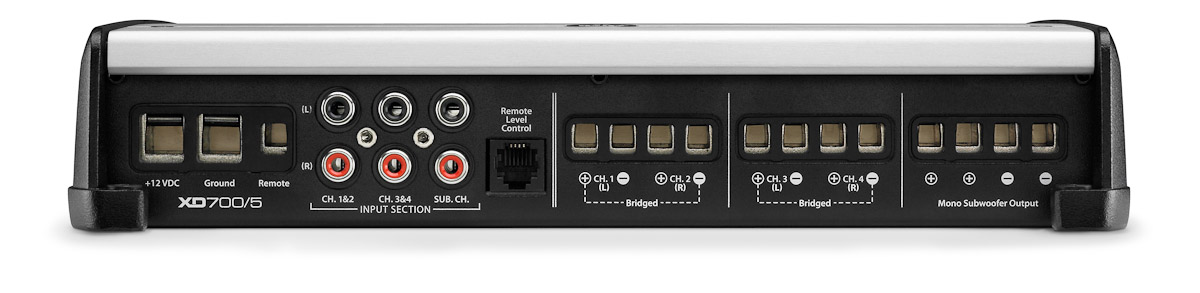

JL Audio XD700/5 5 Ch. Class D Full-Range Amplifier, 700 W
For use in Replacing / Upgrading the Stock C6 Corvette Bose System.
3-Channel Class D System Amplifier, 75 W x 2 @ 4 O + 300 W x 1 @ 2 O - 14.4V
5-Channel Class D System Amplifier, 75 W x 4 @ 4 O + 300 W x 1 @ 2 O - 14.4V
The XD700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and it fits comfortably in just about any vehicle. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 O), while also delivering a stout 300 W of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.
The XD700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an HD-RLC remote level control (sold separately), the amplifier's subwoofer channel level or overall level can be directly controlled from the driver's seat.

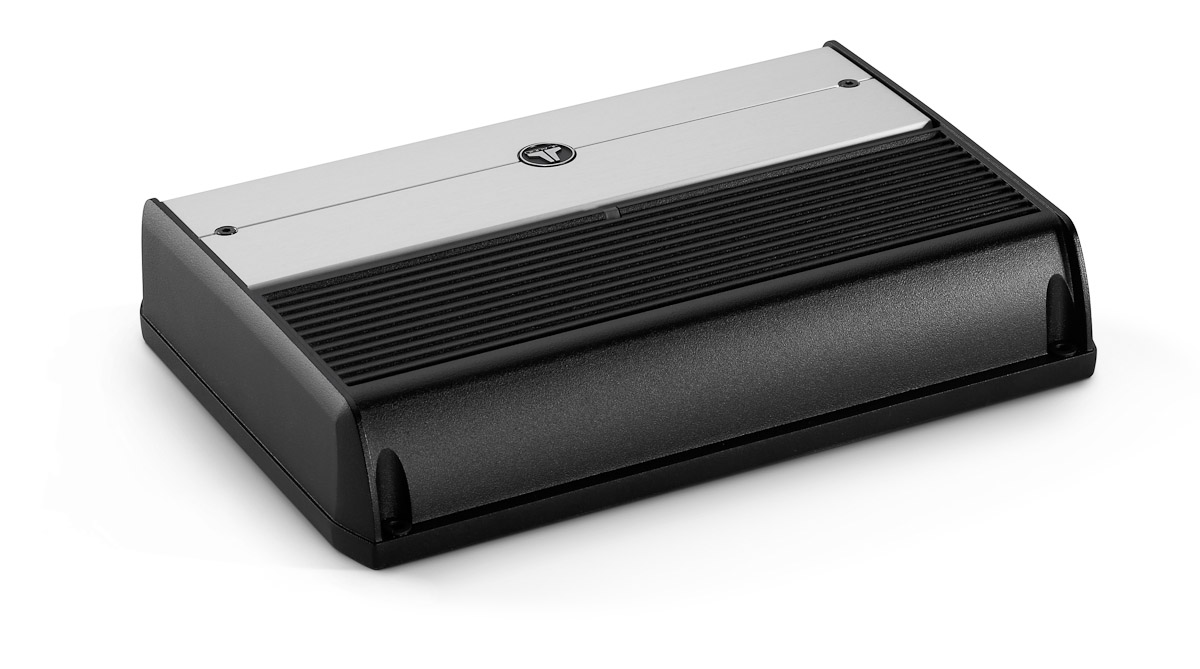

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
Main Channels @ 4 O 75 W RMS x 4
Main Channels @ 2 O 100 W RMS x 4
Main Channels - Bridged @ 4O 200 W RMS x 2
Subwoofer Channel @ 4 O 180 W RMS x 1
Subwoofer Channel @ 3 O 240 W RMS x 1
Subwoofer Channel @ 2 O 300 W RMS x 1
Subwoofer Channel @ 1.5 O N/A
JL Audio XD700/5v2 - XDv2 Series 5-Channel Class D System Amplifier
This potent 5-Channel amplifier employs JL Audio's high-speed NexD switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious power, delivering a full 700 W of total continuous power into a 2 ohm load (14.4V, 1% THD) per channel. Targeted specifically for an audiophile-grade subwoofer + four satellite system, the XD700/5v2 includes a variable slope low-pass filter for the Subwoofer Channel and continuously variable cutoff frequency selection for all channels from 50-500 Hz - x10 capable for Ch 1/2. The XD700/5v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), you can control the volume of the subwoofer channel (Subwoofer Level) or of the entire XD700/5v2 from the front of the vehicle (Master Volume). This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
Advanced Rollback Protection
JL Audio's signature Advanced Thermal Rollback protection system eliminates annoying thermal shutdown events to keep the music playing, even under the most demanding conditions. Should the amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases.
NexD Switching Technology
From the same minds that gave us the technology found in the 'Slash' amplifiers, JL Audio has taken the simple fixed PWM design approach and enhanced it with a very high switching frequency. Full-range NexD amplifiers and channels feature a variable, ultra-high speed version of the NexD technology (switching at well over 400 kHz). In these designs, a self-oscillating modulator with "feed-forward" sends information about the instantaneous power supply voltage to the modulator, combining this with the input signal to cancel out any distortion due to supply voltage fluctuation. This reduces distortion prior to applying feedback, simplifying the overall feedback loop design.
General Features:
- XDv2 Series Class D 5-Channel Amplifier
- RMS Power Rating @14.4V: Channel 1 - 4
- 4 ohms: 75 watts x 4 chan.
- 2 ohms: 100 watts x 4 chan.
- Bridged 4 ohms: 200 watts x 2 chan.
- RMS Power Rating @14.4V: Sub Channel
- 4 ohms: 180 watts x 1 chan.
- 3 ohms: 240 watts x 1 chan.
- 2 ohms: 300 watts x 1 chan.
- RMS Power Rating @12.5V: Channel 1 - 4
- 4 ohms: 60 watts x 4 chan.
- 2 ohms: 90 watts x 4 chan.
- Bridged 4 ohms: 180 watts x 2 chan.
- RMS Power Rating @12.5V: Sub Channel
- 4 ohms: 180 watts x 1 chan.
- 3 ohms: 240 watts x 1 chan.
- 2 ohms: 300 watts x 1 chan.
- NexD High Speed Switching Class D Technology
- Wired HD-RLC remote level control available, sold separately
- LED power (green), over-current (yellow) and protect (red) indicators
- Advanced Rollback Protection
- Differential Balanced Input Section
- Selectable turn-on modes: REM / Offset / Signal
- +12 V Remote Turn-On: Traditional remote lead wire, from headunit
- DC Offset-Sensing: On/Off by detecting a very small DC signal (high-level signal only)
- Signal-Sensing: On/Off by detecting a full-range audio signal at left-channel input (high-level signal only)
- Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Detented, Calibrated Filter Freq. Potentiometer
- Input mode selectable: 2 Ch. / 4 Ch. / 6 Ch.
- State-variable / Sallen-Key Crossover
- Selectable Low-Pass Filter Slope (Sub Ch): 12 dB or 24 dB
- Variable low-pass filter: 50 - 500 Hz, 12 or 24 dB/octave
- Selectable HP filter mode (Ch 1/2): Off / x1 / x10
- Selectable filter mode (Ch 3/4): Off / BP/ HP
|
- Input sensitivity:
- Low level: 800mV - 8V
- High level: 200mV - 2V
- Frequency Response (Ch 1-4): 12 - 22,000 Hz
- Frequency Response (Sub Ch): 10 - 1,000 Hz
- Total Harmonic Distortion (THD): <1%
- Signal to Noise Ratio: >104 dB
- Damping Factor @4ohms: >150 / 50 Hz
- Fuse Rating: 60A x 1 inline (not supplied)
- 4 gauge power and ground wiring is required for installation.
- Weight: 10.00 lb
- Dimensions: 7.09"W x 10.23"L x 2.05"H
- Authorized Internet Dealer
- 2 Year Manufacturer's Warranty
 Check out the JL Audio XD700/5v2 Owner's Manual |
