C7 Sequential Manual Gearbox For Stingray, Grand Sport, Z06, or ZR1

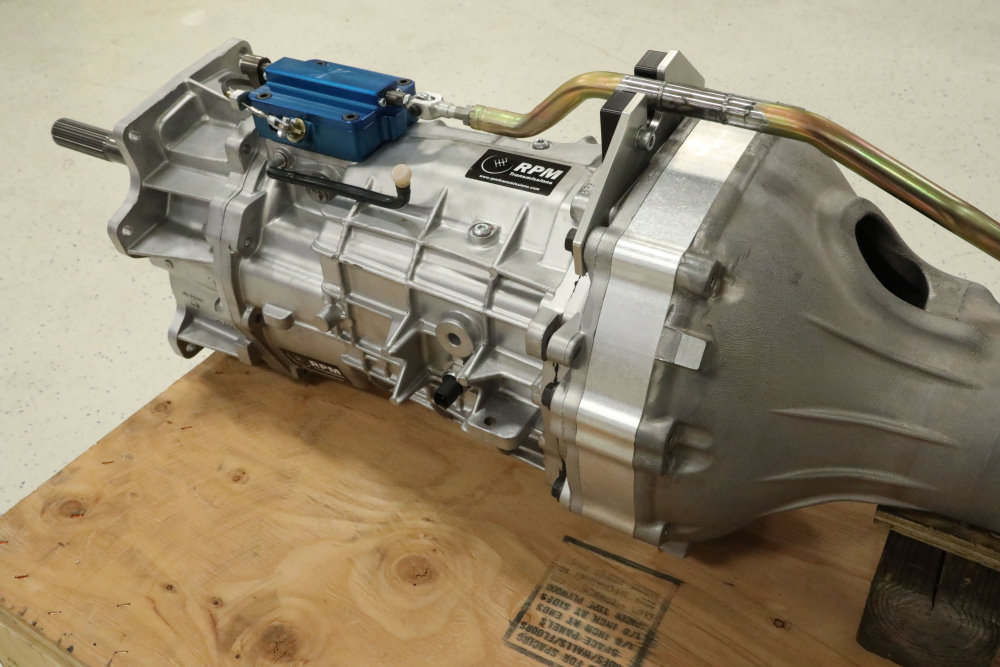

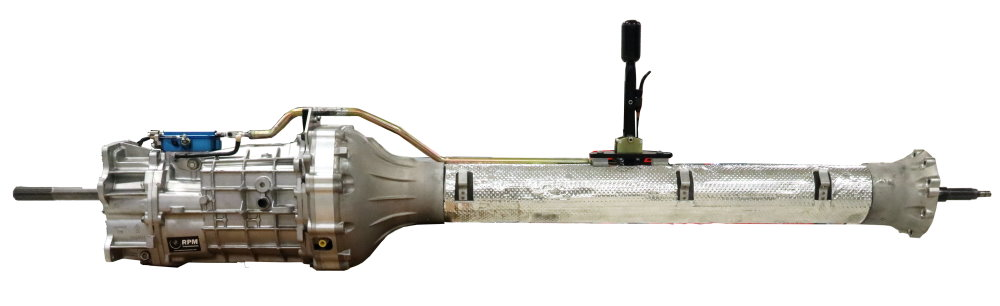

Katech™s new Sequential Manual Gearbox for the C7 Corvette allows for sequential no-lift, clutchless upshifts and rev-matched downshifts with the clutch. This means more time on the accelerator and less time shifting for quicker acceleration and domination on the track.

Features:
-PPG gear set with your choice of ratios (see tab)
-Assembly by RPM Transmissions
-PPG shifter
-PPG LCD gear indicator
-Xineering spark cut/rev match controller
-Katech C7 integration parts
-Transmission cooler lines
-Wiring harness
-Software

Requires TR6060 core (not included).
Requires manual transmission vehicle.
Torque tube not included.
Requires transmission tunnel modification.
Professional installation recommended.
Built to order. Please allow 2 months for build.

Ratios:

STRAIGHT CUT RATIO SETS
2.407 / 1.872 / 1.522 / 1.294 / 1.132 / 1.000

HELICAL CUT RATIO SETS
2.148 / 1.561 / 1.228 / 1.000 / 0.875 / 0.777
2.437 / 1.611 / 1.228 / 1.000 / 0.875 / 0.777
2.946 / 2.071 / 1.438 / 1.000 / 0.797 / 0.634
2.589 / 1.841 / 1.326 / 1.168 / 1.000 / 0.777
3.255 / 2.148 / 1.561 / 1.228 / 1.000 / 0.857

Oversized items must be shipped by LTL Truck Freight. Please ship directly to your body shop or commercial address. The item requires a custom shipping quote to be obtained, and then the total will be adjusted to the shipping cost.
