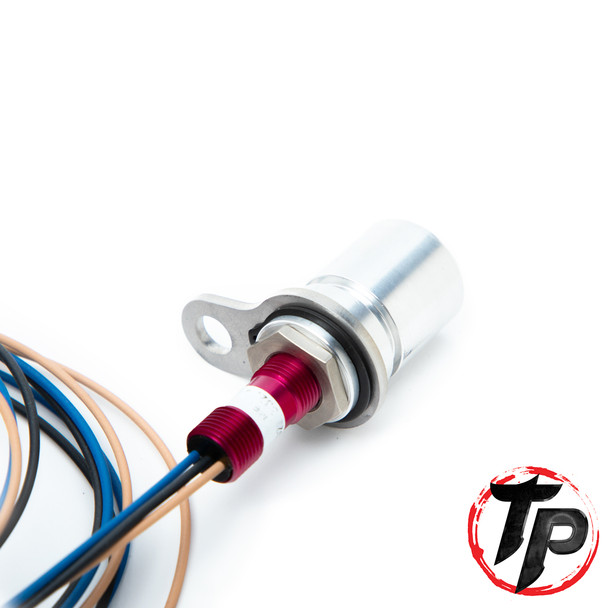

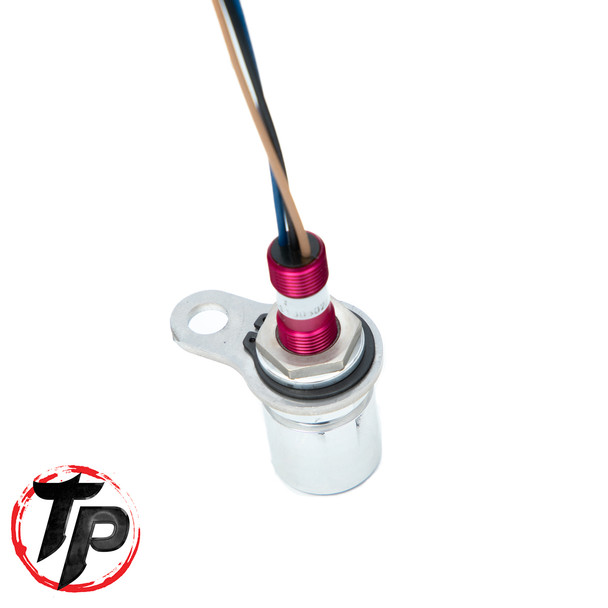

Tick Perf Billet Hall Effect Vehicle Speed Sensor - T56 TR6060 4L80E
GM T-56
Tremec Magnum F
GM Tick Converted Magnum (We did these before the Magnum F was released)
Up to 2015 GM TR6060 (Later TR6060's have an OE Hall Effect sensor)
GM TKX
2WD 4L80E
1996+ 2WD 4L60E
GM 2wd ZF6
The ONE & ONLY Hall Effect Speed Sensor to fit your GM transmission. The TPSS1 is designed as a direct physical replacement for your stock VR (2 wire) speed sensor. No more need for a bouncing driveshaft reluctor and sensor, and no adjustments needed.
Many engine management systems can not accept the VR signal that the OE speed sensors produces. Holley EFI systems, such as the Terminator X and HP systems can only use hall effect sensors for monitoring speed. The TPSS1 will read the stock reluctor ring inside the transmission, meaning no tear-down needed. With a built-in pull-up resistor and mating pigtail included, installation is a breeze and can be done in less than an hour. Machined in-house from billet aluminum and built with superior automotive grade circuitry, the TPSS1 can stand up to the most harsh environments and accurately read speeds in excess of 300mph.
Compatible with Holley systems that utilize the Terminator X, Terminator X Max, HP, and Dominator and many other systems. The TPSS1 will fit a variety of transmissions. Other transmissions may be able to use the sensor, other than the ones listed.
Tick Part Number: TPSS1
