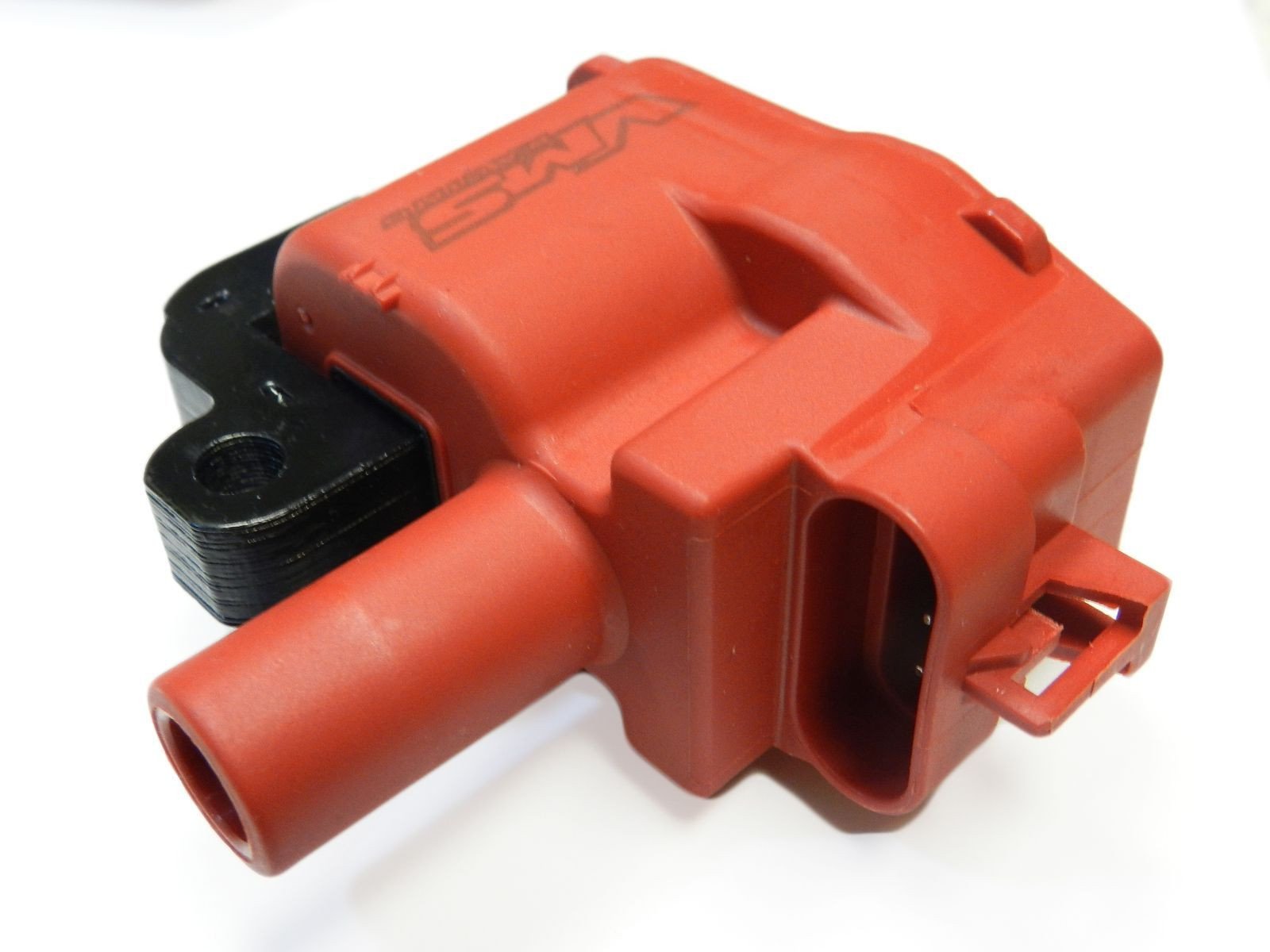

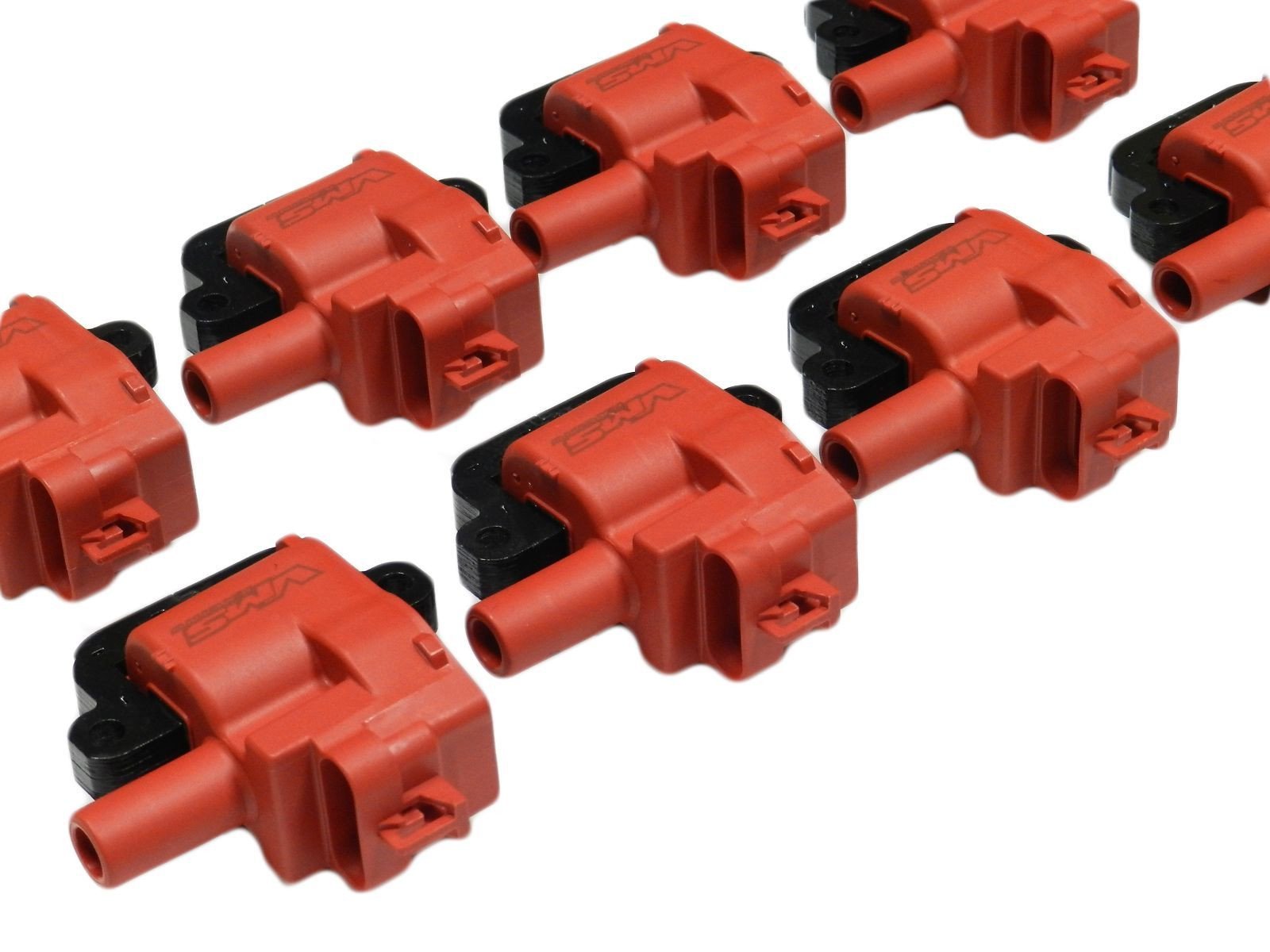

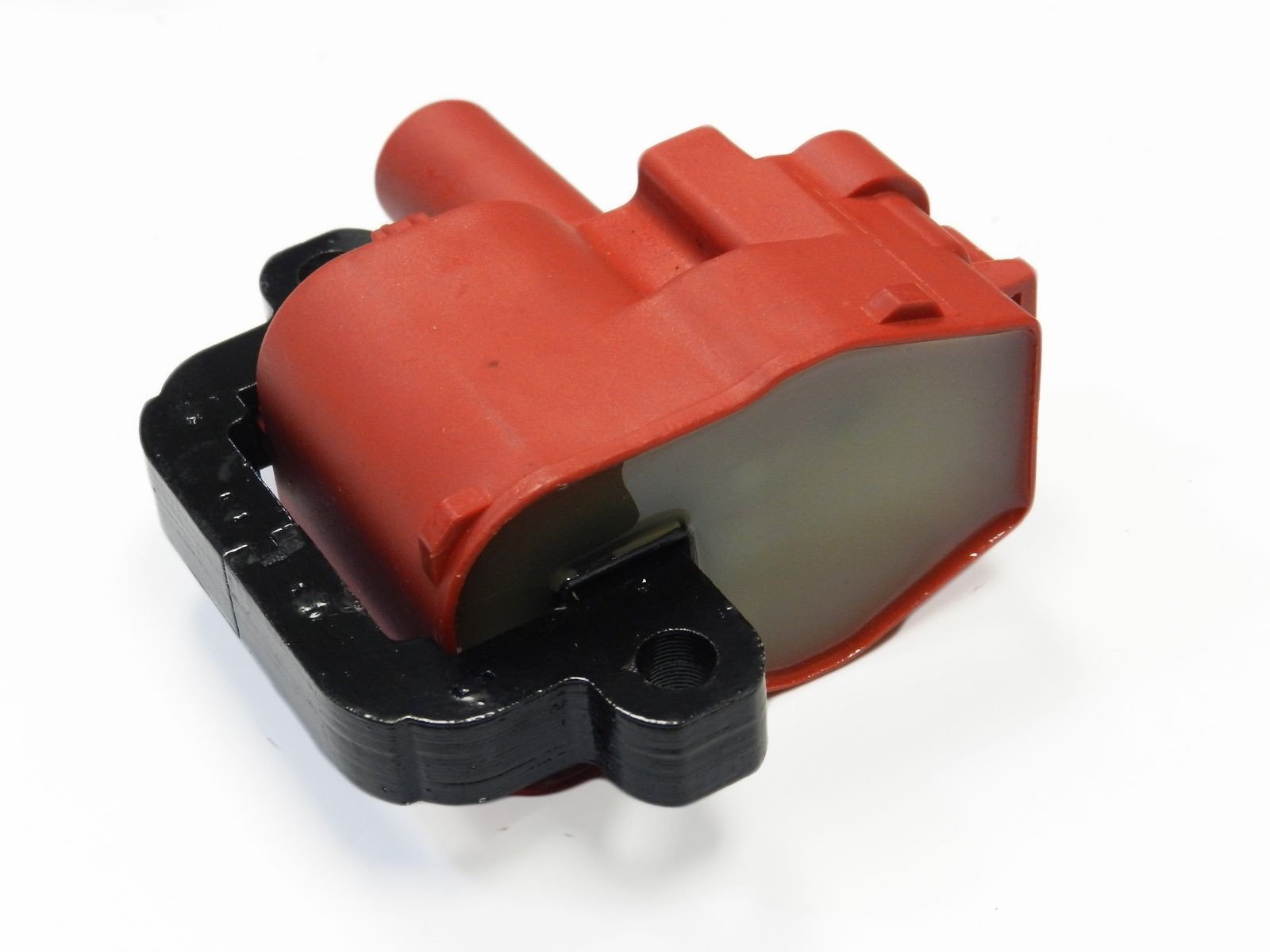

VMS STYLE Ignition Coil Pack Set of 8 for Camaro / Firebird, C5 Corvette LS1, LS6 1997-2002 D580 C1144 RED

Set of 8 VMS STYLE RACING REPLACEMENT Spark Coils that will fit in place of the stock GM LS coils and will directly connect to the factory connectors. These coils will deliver improved power and performance because of the higher energy output.

Increased spark energy and voltage, along with the low RPM  spark capabilities, help improve the combustion process of the fuel mixture to create an efficient burn. The result are quicker starts, improved idle, improved throttle response , cleaner plugs, cleaner emissions plus increased high rpm performance!

Replaces the following factory GM coils:
REPLACES AC DELCO # D580
REPLACES GM # 12556450, 12558948
REPLACES Standard SMP # UF192
REPLACES Borg Warner # E247
REPLACES Wells C1144


SPECIFICATIONS:
• Turns Ratio 56:1
• Primary Resistance .70 ohms
• Secondary Resistance 3.7K ohms
• Inductance 4.2 mH
• Spark duration (mS) 1100 uS
• Peak Current 140 mA
• Maximum Voltage 42,000 Volts
