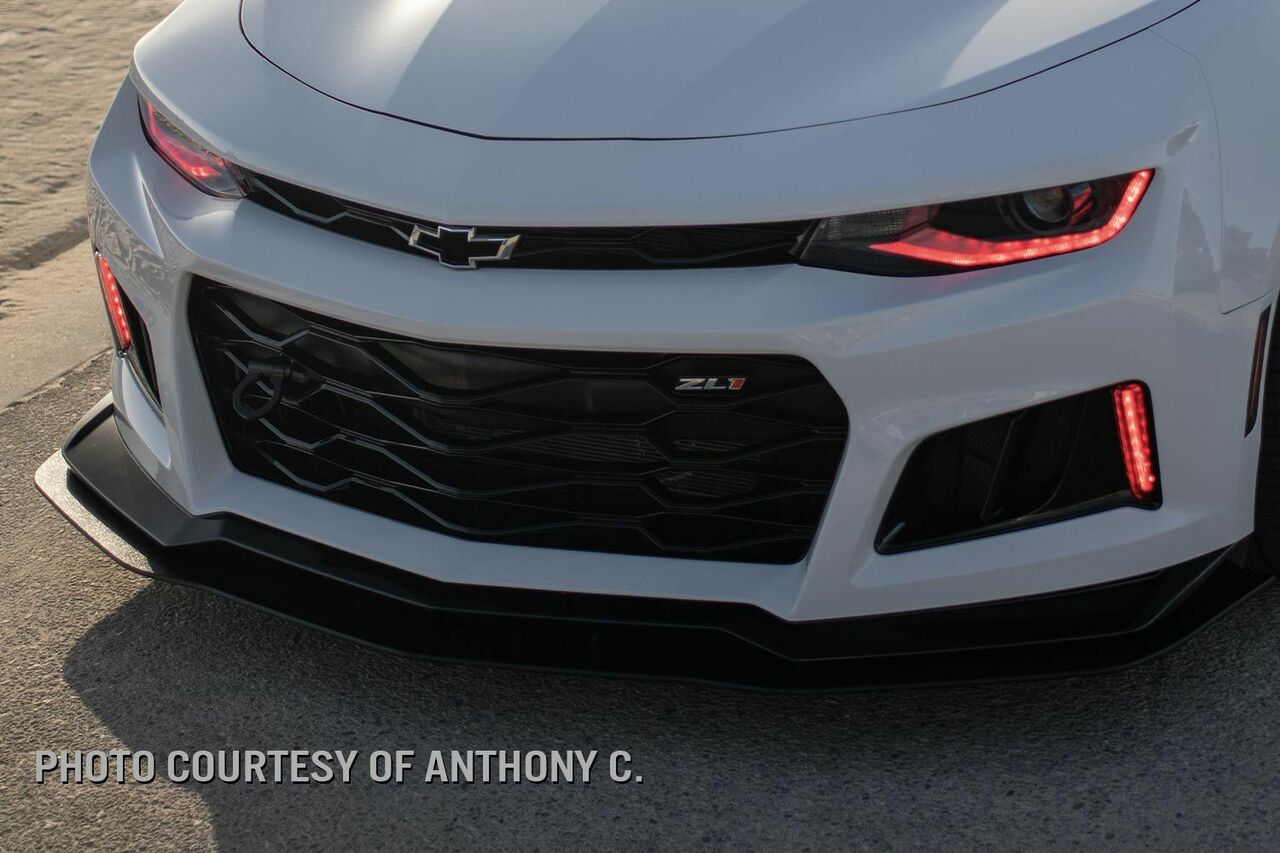

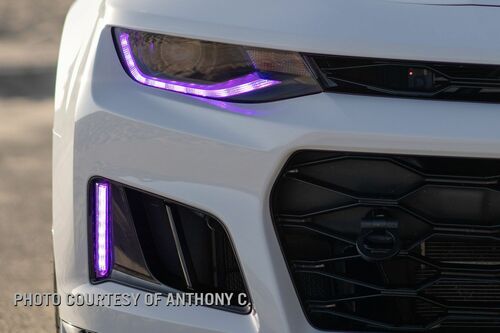

OEM Style, Multicolor Function. The Chevrolet Camaro has white LED DRLs in the headlamps and lower DRL housing, which provide a modern and distinct look on the road. By replacing the circuit boards inside with Diode Dynamics LED circuit boards, you can add full multicolor functionality, to seriously make your ride stand out! Your order includes two sets of LED boards, one for each side of the vehicle.
RGBW. This product is not just RGB, it is RGBW! That means there is an extra LED chip that is specifically white in color, right next to the standard red, green, and blue LEDs. By using an RGBW controller, you can activate and control the white chip independently of the colors. This provides a much more uniform, pure, and bright white color than the traditional method of combining all RGB signals so you can keep a clean, factory white appearance for everyday driving. One RGBW Bluetooth Controller will control both the upper and lower DRL boards simultaneously. If you would like to control the upper and lower boards separately, you will need two separate controllers.
Additional Turn Signal. To take it a step further, you can select the RGBWA boards, which add yet another set of LEDs, high-power amber emitters. Any time your turn signal is activated, they will flash amber along with the factory turn signal.
DRL Override. Unlike other LED boards on the market, the RGBWA LED boards have an optional DRL override feature. This feature allows you to automatically switch the LEDs to a high-brightness White color when power is applied to the red input signal, "overriding" the controller color selected. This means you can leave the LEDs set to an accent color of your choice, then automatically switch to White while driving.
OEM-Grade Design. At Diode Dynamics, we work directly from OEM data, and use a 3D scanner, to develop precise replacement boards with identical mounting points and shape. Just remove the original boards, and ours will fit directly in place with correct alignment. You'll also see OEM design features, such as high-intensity automotive emitters, wire connectors, and serial numbers for quality assurance.
RGBW Upper or Lower DRLs:
- (x2) sets LED boards, left and right
- (x2) waterproof drivers
- (x1) RGBW Extension wire
- (x8) Nylon Washers
- (x1) SolidState Relay Harness
- (x1) Battery Input Wire
- (x1) RGBW Controller (optional, required)
- (x4) T-taps
RGBWA Upper or Lower DRLs:
- (x2) sets LED boards, left and right
- (x2) waterproof drivers
- (x1) RGBW Extension wire
- (x2) JST Pigtails
- (x8) Nylon Washers
- (x1) Add a Fuse Harness
- (x1) DRL Power Wire
- (x1) SolidState Relay Harness
- (x1) Battery Input Wire
- (x1) RGBW Controller (optional, required)
- (x10) T-taps
|
