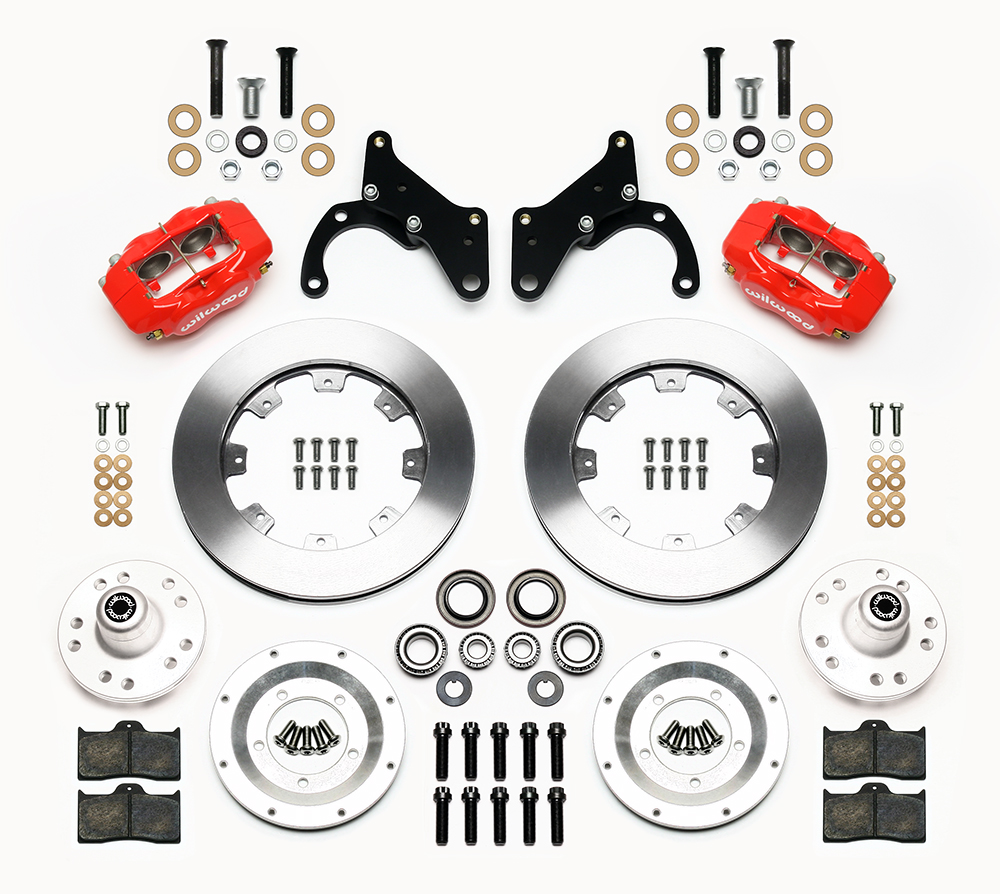

1969-1982 Corvette Wilwood Dynalite Front 12.19" Brake Kit Red

1969-1982 Corvette Wilwood Dynalite Front 12.19

$1,369.50

Model: WIL140-12045-R Manufacturers: Willwood

Qty:

Reviews

Add to Wish List

Description

1969-1982 Corvette Wilwood Dynalite Front 12.19" Brake Kit Red

KIT,FRONT,IMPALA DRUM 69-70/DISC 68-70/ VETTE 69-82,FDLI,12.19 RED

FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

Specifications

OE Hub Offset:	+0.28
Spindle Type:	Factory Disc Spindle Factory Drum Spindle
Mount Type:	Lug
Caliper Type:	4 - Red Powder Coat
Rotor Diameter:	12.19
Min Wheel Diameter Req'd*:	15
UPC	889545014945
Left Hand - Part No:	120-13846-RD
Right Hand - Part No:	120-13846-RD

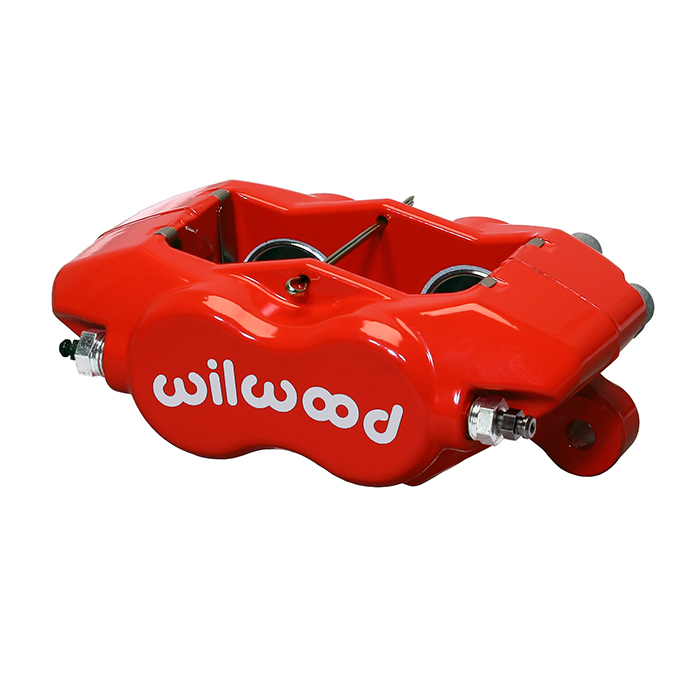

Type:	Forged Dynalite Internal
Finish Color:	Red Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.75
Piston 2 Bore (in):	1.75
Piston Area (In²):	4.80
Piston Type:	Stainless
Brake Pad Plate:	7112
Brake Pad Area (In²):	6.36
Brake Pad Volume (In³):	2.1
Pad Compound:	BP-10
Left Hand - Part No:	160-11862
Right Hand - Part No:	160-11862
Type:	Ultralite HP 32
Style:	Plain Face
Surface Finish:	Plain
Material:	Iron
Outside Diameter (in):	12.19
Width (in):	1.10
Vane Count:	32 V
Design Type:	ULHP
Burnished:	No
Hub - Part No:	270-12038
Type:	Hub - Vented Rotor Offset
Material:	Aluminum
Finish Color:	Bare
Mount Style:	Adapter
Bolt Circle 1:	5 x 4.50
Bolt Circle 2:	5 x 4.75
Stud Diameter - BC 1:	1/2-20
Stud Diameter - BC 2:	1/2-20
O-ring Kit:	130-2655
Replacement Dustboot:	N-A
Replacement Piston 1:	200-7528
Replacement Piston 2:	200-7528
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-5875
Wear Plate - Right Hand:	300-5875
Pad Retainer:	180-0056
Bleed Screw Kit:	220-0627
Front Line Kit:	220-8307

140-12045 Black Calipers 12.19-inch Rotors Undrilled Rotors; 140-12045-D Black Calipers 12.19-inch Rotors Drilled & Slotted Rotors; 140-12045-DR Red Calipers 12.19-inch Rotors Drilled & Slotted Rotors; 140-12045-R Red Calipers 12.19-inch Rotors Undrilled Rotors; Manufacturer configuration SKUs retained; review rotor diameter and color options; Each listed SKU has its own final price; no surcharge added
