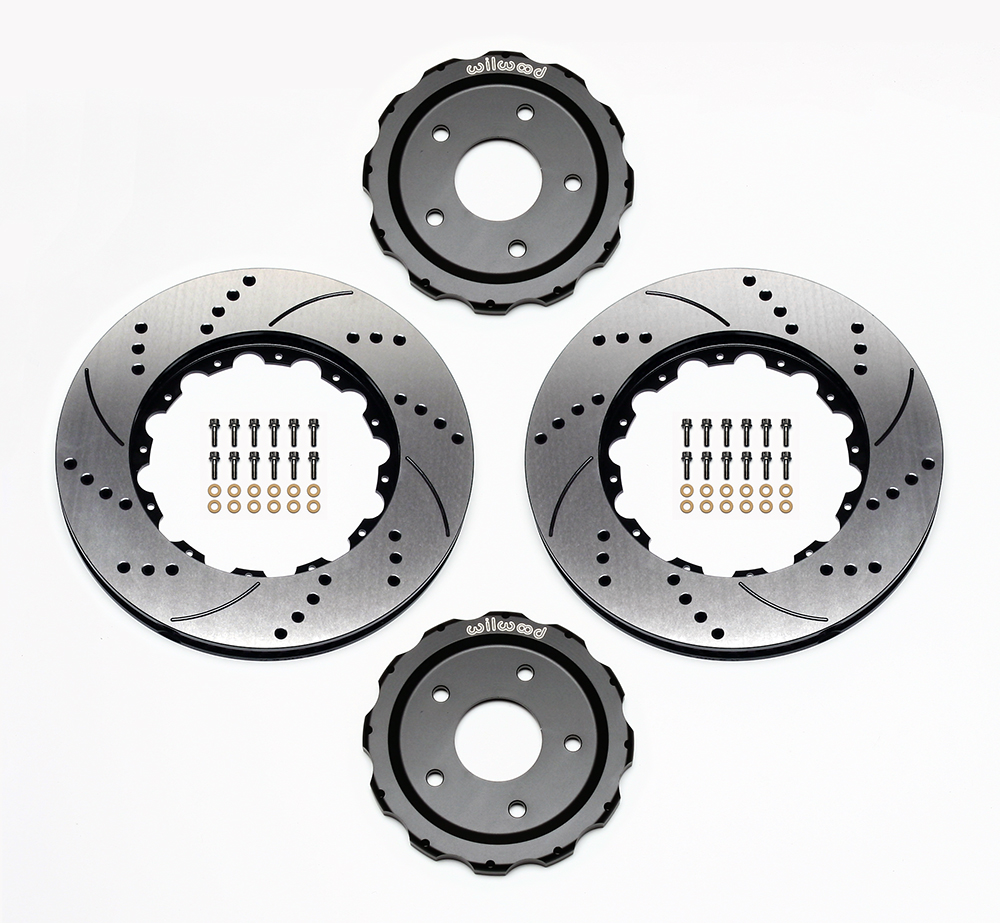

2006-2013 Corvette C6 Z06 Wilwood Front 14" Drilled Rotor Kit

KIT,ROTOR,FRONT,CORVETTE C6-Z06,OE UPGRADE,14.00x1.25 ROTOR,SRP

ProMatrix pad, rotor, and flexline upgrade kits offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers. High performance pad compounds are specially selected to provide increased brake response and higher resistance against fade. Two-piece directional vane GT rotor kits provide high temperature durability for the track. SRP drilled and slotted black e-coat rotor kits provide high-tech style with corrosion resistance for the street. Stainless steel braided flexlines add style, durability, and firmer response with reduced deflection under load. (-U kits do not containg pads or lines).

Specifications

Spindle Type:Factory Disc Spindle
Caliper Type:0 - No Calipers Included
Rotor Diameter:14.00
Min Wheel Diameter Req'd*:18
UPC889545016680
Left Hand - Part No:160-12342-BK
Right Hand - Part No:160-12341-BK

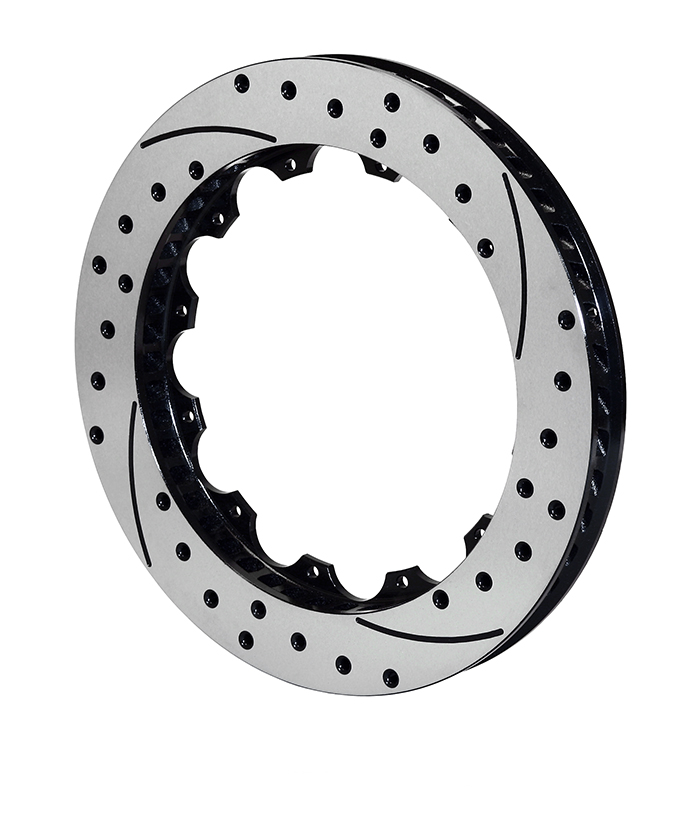

Type:SRP Drilled Rotor & Hat
Style:SRP Drilled & Slotted
Surface Finish:Black Electro Coat
Material:Spec-37 Iron
Outside Diameter (in):14.00
Width (in):1.25
Vane Count:72 CV
Design Type:SRP-BLK
Burnished:No
Hat - Part No:170-12390
Type:Big Brake Hat - Short Offset
Material:Aluminum
Finish Color:Black E-Coat
Hat Offset Dimension (in):0.230
Bolt Circle 1:5 x 4.75
Stud Diameter - BC 1:0.520
Stud Diameter - BC 2:0.000
Stud Diameter - BC 3:0.000
Bolt Kit:230-8008


140-12496 14.00-inch Rotors Slotted Rotors; 140-12496-D 14.00-inch Rotors Drilled & Slotted Rotors; Each listed SKU has its own final price; no surcharge added
This product was added to our catalog on Saturday 26 September, 2026.
