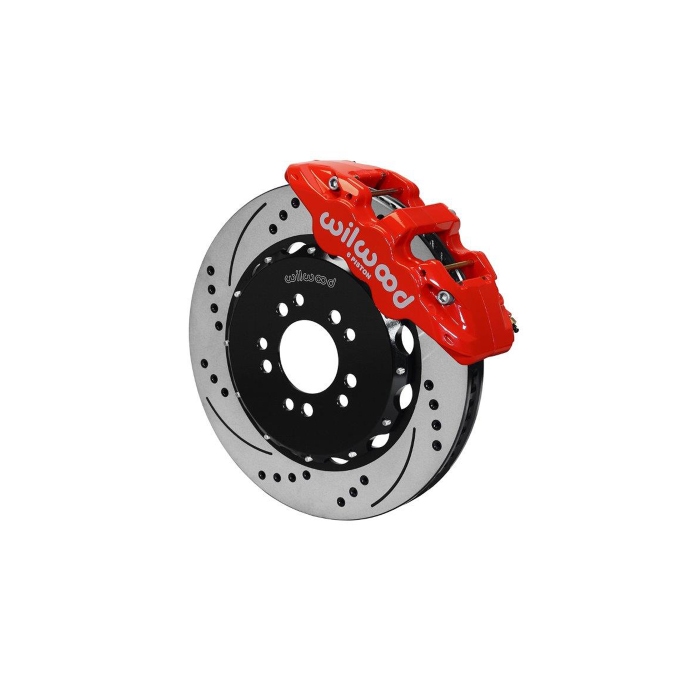

C7 Corvette 14-19 Wilwood AERO6 Front Brake Kit w/15" SPR Drilled RotorsWilwood

C7 Corvette 14-19 Wilwood AERO6 Front Brake Kit w/15

$2,569.99

Model: DB-1258 Manufacturers: ZIP

Qty:

Reviews

Add to Wish List

Description

Wilwood's forged aluminum Aerolite radial mount calipers and 15" diameter Spec 37 alloy directional vane two-piece rotors are combined in an all new brake upgrade packages for the 2014-2019 C7 Corvette Stingray. Six piston front calipers and four piston rears are available in gloss black or red. Available with SRP drilled and slotted performance rotors with BP-10 compound metallic composite Smart Pads, or GT competition series rotors with face slots only and BP-20 compound pads, deliver high-torque stopping power, optimized cooling efficiency, and high-tech styling for the street or track. Take your pick!

Each kit includes all necessary hardware with DOT approved stainless steel braided flex lines, and a detailed instruction guide for an easy bolt-on installation.

Check out these features on the 2014-2019 Corvette Aerolite 6R Front Brake Package:

Aerolite 6-piston radial mount forged aluminum calipers
Fits inside 19" wheels (see diagram for clearance requirements)
15" x 1.25" staggered vane Spec 37 SRP drilled and slotted 2-piece brake rotors - designed for street and track use
BP-10 compound Smart brake pads
Calipers available in gloss black or red
DOT approved stainless steel braided flex lines included
Bolt-On kit includes all necessary hardware and detailed installation guide

AERO6 forged six-piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging from 12.88" to 15.00" give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The body of Aero series caliper is stress-flow forged from a premium grade aluminum alloy billet. Stress-flow forging realigns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The results are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load.

GT Series Big Brake Short Offset rotor hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions.

SRP Drilled Performance Rotors feature a specially engineered directional cross drill and face slot pattern that improve brake response and pad performance throughout the entire range of light to heavy braking. The venting and cleaning action of the holes and slots will reduce pad glaze and disperse gasses and heat generated during the pad to rotor interface. The holes and slots also inhibit irregular pad compound build-up on the rotor faces resulting in smoother engagement and improved pedal response in all conditions. The material removed also contributes to lower rotating and unsprung suspension weight. Along with the excellent performance characteristics of this rotor design, each rotor is treated with a black electro coat to inhibit corrosion on all areas of the rotor. The high tech design, classic style, and aesthetic appeal of the SRP series are the perfect finishing touches to any wheel and tire detail.

Wilwood has been expertly designing and manufacturing high-performance disc brakes in the USA since 1977. Engineered and rigorously tested for the track, Wilwood brakes provide unsurpassed quality and performance with sleek, lightweight designs. Wilwood has dominated the motorsports arena for decades, making their street market brakes among the most technologically advanced around.

Wilwood Item Number 140-13911-D, 140-13911-DN, 140-13911-DR

Since the companyâ€™s inception in 1977 by Billy Wood, Willwood has developed a substantial matrix of brake components and engineering techniques that allows them to quickly and reliably create brake systems for almost any application. With headquarters in Camarillo, California, Wilwood employs approximately 250 people. Wilwood's off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee - and right in the middle, theyâ€™re perfect for your Corvette too.
