2014-2019 Corvette C7 Wilwood AERO6 14.00" Front Brake Kit Drilled/Slotted Black

2014-2019 Corvette C7 Wilwood AERO6 14.00

$3,009.27

Model: 140-18535-D Manufacturers: Willwood

Qty:

Reviews

Add to Wish List

Description

2014-2019 Corvette C7 Wilwood AERO6 14.00" Front Brake Kit Drilled/Slotted Black

AERO6 Big Brake Front Brake Kit

Wilwood’s 140-18535-D Aero6 Big Brake front kit is designed specifically for 2014-Up C7 Corvette and other applications using these spindles.This big brake kit combines 14.00” two-piece SRP Drilled rotors with lightweight aluminum hats, black Aero6 six piston calipers, and BP 10 Smart Pads. Verify fitment on the Wilwood website.

AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00” to 15.00”rotors provide maximum cooling for sustained high heat durability.

Vehicle Fitment

2014-2019 Chevrolet Corvette C7: Stingray 2014-2019; Grand Sport 2017-2019; Z06 2015-2019; Z51 2014-2016; ZR1 2019. Factory disc spindles. Verify wheel clearance.

Kit Contents

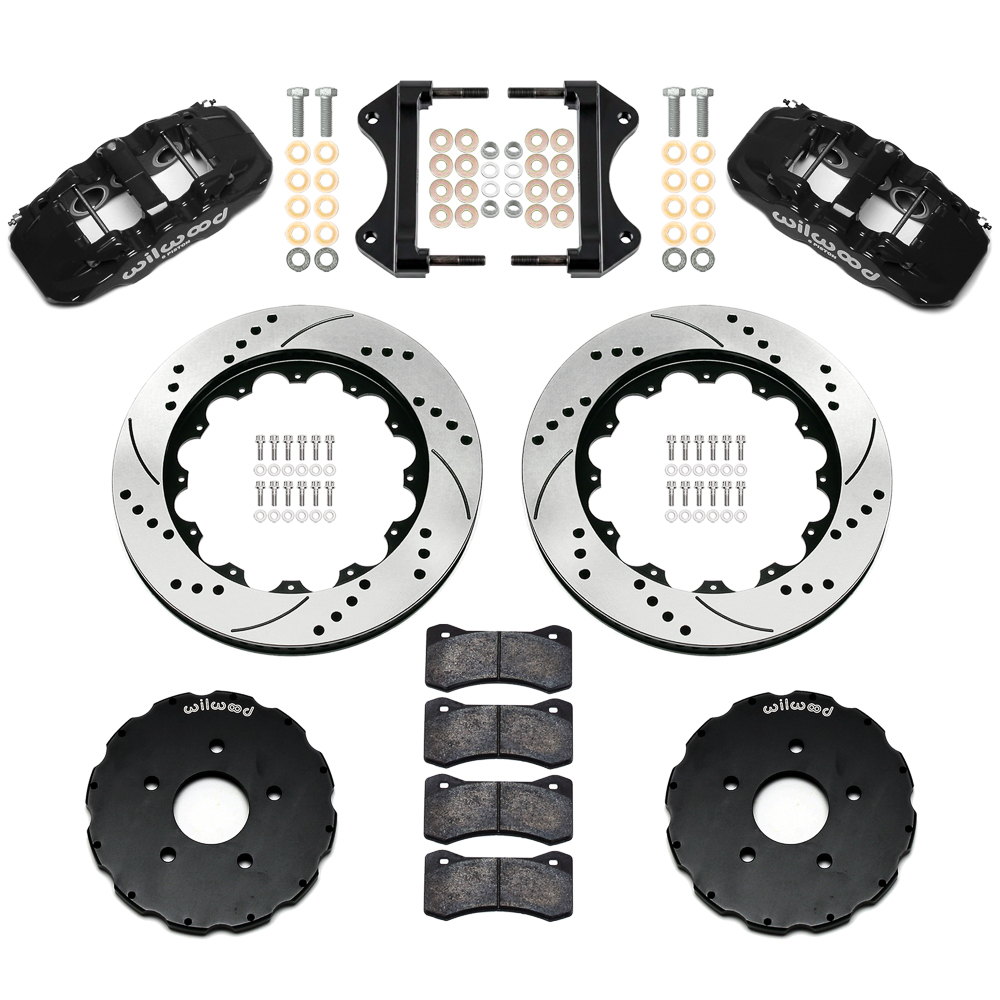

Wilwood AERO6 Big Brake Front Brake Kit Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor

View Custom Caliper Colors

Kit Summary

Spindle Type:	Factory Disc Spindle
Mount Type:	Radial
Caliper Type:	6 - Black Powder Coat
Rotor Diameter:	14.00
Min Wheel Diameter Req'd*:	18
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

Calipers

Left Hand - Part No:	120-13290-BK
Right Hand - Part No:	120-13289-BK
Type:	AERO6
Finish Color:	Black Powder Coat
Piston Count:	6
Piston 1 Bore (in):	1.62
Piston 2 Bore (in):	1.12
Piston 3 Bore (in):	1.12
Piston Area (In²):	4.04
Piston Type:	Stainless
Mount Type:	Radial
Brake Pad Plate:	6617
Brake Pad Area (In²):	11.1
Brake Pad Volume (In³):	5.2
Pad Compound:	BP-10
AERO6 Caliper - Black Powder Coat

Rotors

Left Hand - Part No:	160-8397-BK
Right Hand - Part No:	160-8396-BK
Type:	SRP Drilled Rotor
Style:	SRP Drilled & Slotted
Surface Finish:	Black Electro Coat
Material:	Spec-37 Iron
Outside Diameter (in):	14.00
Width (in):	1.25
Vane Count:	72 CV
Design Type:	SRP-BLK
Burnished:	No
Dynamically Balanced:	Yes
SRP Drilled Rotor - Spec-37 Iron - Black Electro Coat

Rotor Hats

Hat - Part No:	170-8919
Type:	Big Brake Hat - Short Offset
Material:	Aluminum
Finish Color:	Black E-Coat
Hat Offset Dimension (in):	0.290
Bolt Circle 1:	5 x 4.50
Bolt Circle 2:	5 x 4.75
Stud Diameter - BC 1:	0.520
Stud Diameter - BC 2:	0.520
Stud Diameter - BC 3:	0.000
Big Brake Hat - Short Offset - Aluminum - Black E-Coat

Caliper Parts

O-ring Kit:	130-5972
Replacement Dustboot:	N-A
Replacement Piston 1:	200-7519
Replacement Piston 2:	200-7513
Replacement Piston 3:	200-7513
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	N-A
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-5876
Wear Plate - Right Hand:	300-5876
Pad Retainer:	180-9874
Bleed Screw Kit:	220-0627

*Brake Lines Needed

Front Line Kit: Front Line Kit: Front Line Kit:

220-8176 220-9100 220-12168

Hat

Bolt Kit:

230-8008

Manufacturer SKUs retained separately. Color variants: Black / Red powder coat. Rotor size options in search: 13.06 / 14.00 inches (AERO6: 14.00 only). Rotor design variants have distinct Wilwood SKUs. 140-18535Black Calipers14.00-inch RotorsSlotted Rotors; 140-18535-DBlack Calipers14.00-inch RotorsDrilled & Slotted Rotors; 140-18535-DRRed Calipers14.00-inch RotorsDrilled & Slotted Rotors; 140-18535-RRed Calipers14.00-inch RotorsSlotted Rotors.
