C7 Corvette Custom Lighted LED Emblems. Direct Fit Custom LED Lighted C7 Corvette Nose and Rear Bumber Emblems. Simple Two Wire Hookup to any existing connection such as parking lights or taillights.
Price is for One Emblem. The emblems will be available in white, blue, green, amber, red, purple and RGB (colorshift). RGB has 7 Colors and is selectable by remote.

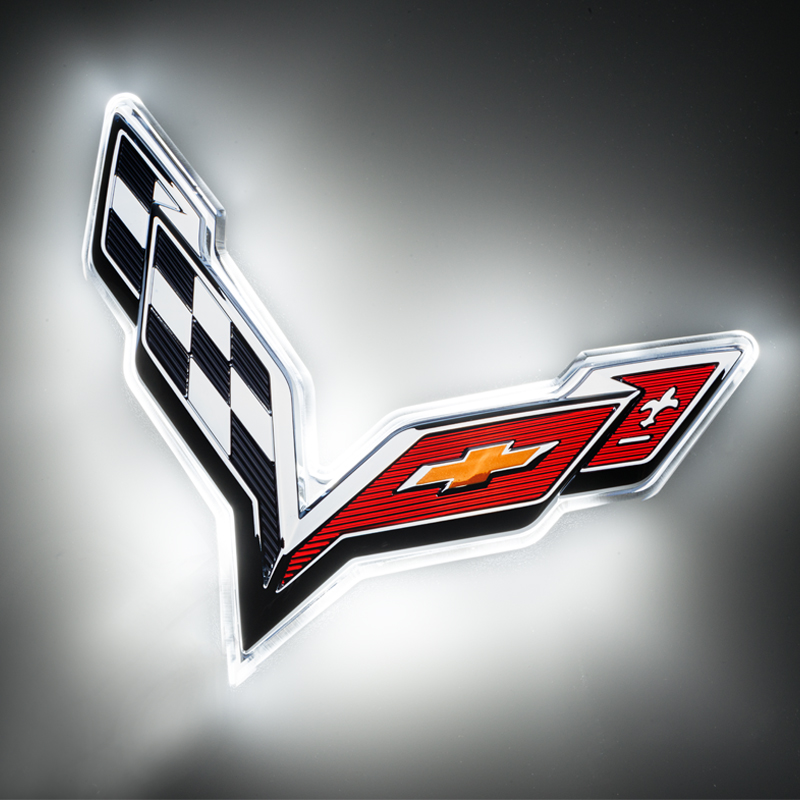

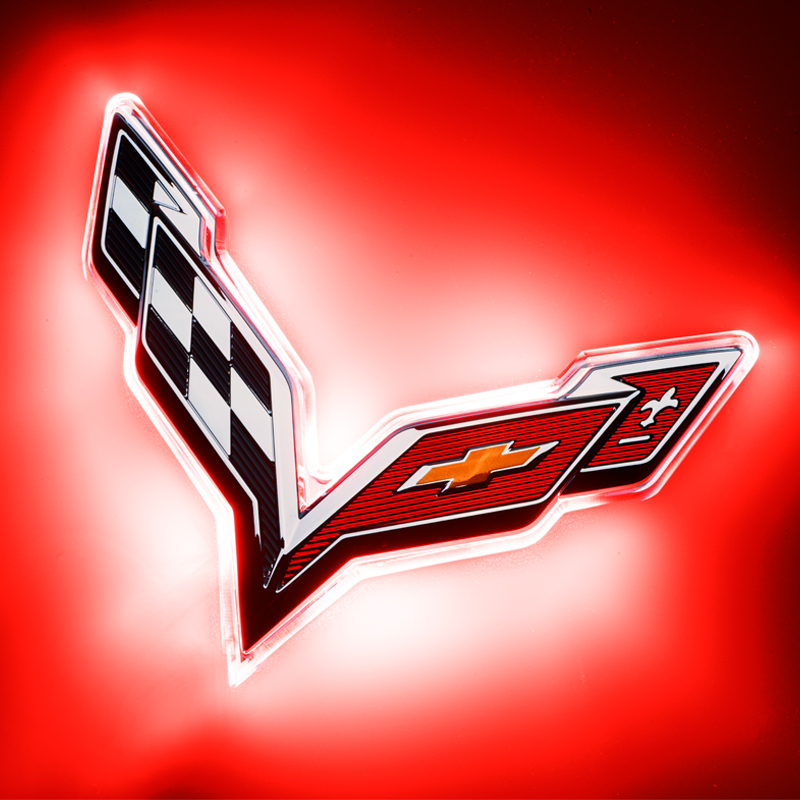

C7 Corvette Illuminated LED Emblem - ORACLE™ : C7 Stingray, Z51 & Z06 & ZR1
These genuine factory badges are modified to stand out from the crowd. We take the original emblems from the vehicle manufacturer and modify them to accept an acrylic plate fitted with ORACLE LEDs for a smooth visual pop. Simply remove the existing factory badge and install this in its place. Wiring is routed through existing holes in the trunk lid and ties into the parking lights. Wiring and connectors for installation included. Also Includes pre-installed 3M adhesive backing. Add an ORACLE Dual-Intensity LED circuit and this illuminated badge can also be used as 3rd brake light.
*Dual Intensity option - Enables the emblem to operate as both a running light and a brake Light.
Product Specs:
• Factory Badges
• Acrylic LED Plates Integrated
• Wiring & Connectors Included
• Can be used as 3rd Brake Light
• 3M Adhesive Backing
• Available Colors: White, Blue, Red, Green, Amber, UV/Purple, RGB ColorSHIFT
| ORACLE Model # |
ORACLE Part # |
Color |
| CORVC7-EMB-W |
3633-001 |
White |
| CORVC7-EMB-B |
3633-002 |
Blue |
| CORVC7-EMB-R |
3633-003 |
Red |
| CORVC7-EMB-G |
3633-004 |
Green |
| CORVC7-EMB-A |
3633-005 |
Amber |
| CORVC7-EMB-UV |
3633-007 |
U/V Purple |
| CORVC7-EMB-PK |
3633-009 |
Pink |
| CORVC7-EMB-AQ |
3633-010 |
Aqua |
| CORVC7-EMB-RGB |
3633-333 |
RGB |
| CORVC7-EMBDI-W |
3655-001 |
White - Dual Intensity |
| CORVC7-EMBDI-B |
3655-002 |
Blue - Dual Intensity |
| CORVC7-EMBDI-R |
3655-003 |
Red - Dual Intensity |
| CORVC7-EMBDI-G |
3655-004 |
Green - Dual Intensity |
| CORVC7-EMBDI-A |
3655-005 |
Amber - Dual Intensity |
| CORVC7-EMBDI-UV |
3655-007 |
U/V Purple - Dual Intensity |
| CORVC7-EMBDI-PK |
3655-009 |
Pink - Dual Intensity |
| CORVC7-EMBDI-AQ |
3655-010 |
Aqua - Dual Intensity |
Available LED Colors:
White
Blue
Red
Green
Amber
U/V Purple
Pink
Aqua
RGB *Dual intensity is not available
Includes:
OEM Corvette C7 Badge, Clear Acrylic Insert and ORACLE LEDs, all assembled and
ready to install!
Installation Instructions:
1) Remove Old Badge (detailed in included instructions)
2) Route Wires Through Factory Hole in the Trunklid
3) Remove Self-Adhesive backing and stick to Trunklid
4) Connect Wires to Parking Lights as per Instructions
*Dual Intensity Circuit Enables the Badge to operate as BOTH a Running light AND a Brake Light!
NOTE: This item is built-to-order which means there is a processing time of up to 7 days to have your item built and shipped. |
