20-26+ C8 Corvette 6-Piston Front Caliper/Rotor Combo (380x36mm)(Aftermarket Wheels)(Race Pads) - Alcon

Fits 2020+ C8 Corvette

Description:

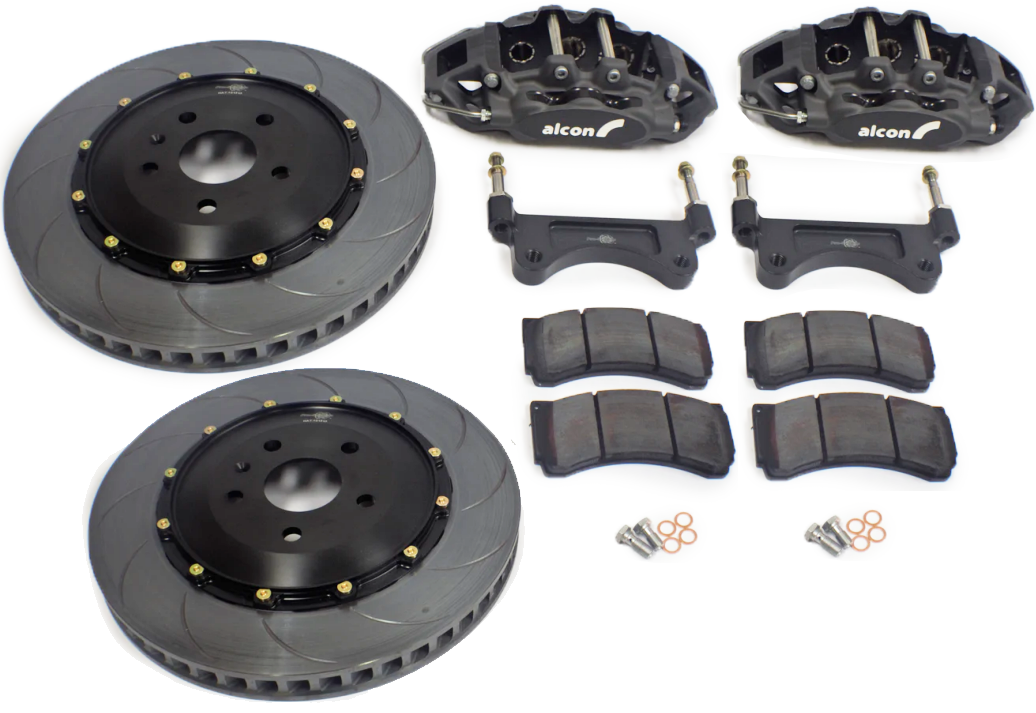

Take your 2020+ C8 Corvette braking performance to the next level with the Alcon Pro-System Front Brake Upgrade Kit – Part BRK.200520.H163. Designed for aftermarket wheels (19" or larger), this high-performance big brake system pairs Alcon’s motorsport-proven 380 × 36 mm precision-machined rotors and lightweight 6-piston forged aluminum calipers with aggressive Project Mu H16-03 race brake pads for exceptional bite, modulation, and thermal resistance on both street and track.

Every kit is manufactured in the USA with fully floating two-piece rotors, anodized aluminum hats, anti-rattle clips, and springs for improved durability and consistent pad contact under extreme braking loads. The Project Mu H16-03 compound is chosen for track-ready stopping power and fade resistance, delivering confident performance in repeated high-speed deceleration zones.

This kit is engineered to retain compatibility with your Corvette’s stock brake system, including master cylinder, booster, and ABS, while offering race-inspired control and feedback. Whether you’re running autocross, HPDE events, or spirited canyon drives, the BRK.200520.H163 delivers precision braking that exceeds stock limitations.

Key features

• Larger diameter rotors for increased brake torque
• Increased pad area for reduced work rate
• High-friction pads for increased stopping power
• Lightweight materials for 7.6lb weight saving compared to Z51 brakes
• Pad material options:Project Mu H16-03 Race Pads (Track Use)
• Dyno-bedded rotors and pads
• Precision-machined and anodized aluminum hats
• Fully floating rotor attachment with anti-rattle clips
• Billet machined caliper bracket with precision studs
• 2 piece forged aluminum calipers
• 6 piston - Front
• Stainless steel pistons
• High temperature seals
• Dirt seals included
