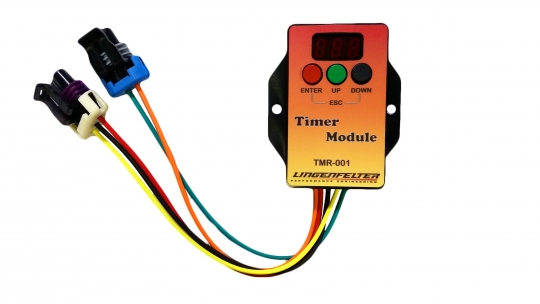

Lingenfelter TMR-001 Timer Control Module

Lingenfelter TMR-001 Timer Control Module
$319.95
Qty:

Add to Wish List

Product Details


Applications:
  • Allow pumps and/or fans to run for a specified time
  • Time delay for drag racing, standing mile, and other racing events
    • Delay nitrous activation for a specified time
    • Activate timing retard after a specified time
    • Improve reaction time consistency by allowing racers to release the line-lock or trans-brake button at the top of the Christmas tree.
  • Cycle testing equipment based on a repetitive ON and OFF time

Description:
  • The TMR-001 is designed to control two relays based on a single stage timer. This module can be used to activate two relays to control fans, pumps, or other devices while the vehicle is keyed off. The TMR-001 can keep the devices on for a specified time. The TMR-001 can be used to delay nitrous activation and activate timing retard after a specified time. The TMR-001 also provides two different modes that allow the time to repeat or only allow the time to run once.

Features:
  • Two easily adjustable normally open or normally closed relay outputs
  • One +12V timer activation input.
  • The TMR-001 can be adjusted in 0.01 second, 0.1 second, or 1 minute increments.
  • The TMR-001 delay can be adjusted from 0.01 seconds to 999 minutes.
  • Repeat Mode and One Shot mode.
  • Three easily accessible buttons for programming and starting the timer.
  • One bright three-digit display used to display time and display settings while programming.

Benefits:
  • High current capacity - 10 A
    • Anything that draws above 10 A needs to use an external relay.
  • Can be used to control up two devices including fans, electric water pumps, and other devices.
    • Cool the vehicle after the vehicle is keyed off.
  • Can be used for cycle testing using the repeat mode.
  • Works over a wide temperature range

Specifications:
  • Voltage operating range: 9-18 volts
  • Max current: 10 A
  • Black anodized aluminum enclosure
  • Fully potted internally
  • Includes mating harness with fully sealed connectors
  • 1 year warranty

This product was added to our catalog on Thursday 25 August, 2022.
