AEM High Flow In-Tank 320 lph Fuel Pump for C5 Corvette, Drop In High Flow

AEM’s High Flow In-Tank Fuel Pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It delivers reliable performance and high volumes of fuel flow for roughly half the cost of comparable performance fuel pumps.

The AEM High Flow In-Tank Fuel Pump (PN 50-1000) flows 320 lph (84 gph) at 43 PSI and is capable of supporting over 1,000 HP at 43 PSI.* Click on the flow curves and current draw vs. fuel pressure graphs below for more information.

AEM High Flow In-Tank Fuel Pump Features:

    Designed for high output naturally aspirated and forced induction EFI vehicles
    In-Tank design
    Tested to flow 320 lph @ 43 PSI
    39mm diameter fits most applications
    Offset inlet design eases installation
    Each pump individually tested
    For gasoline vehicles (pump life may be diminished when used with E85 fuel)

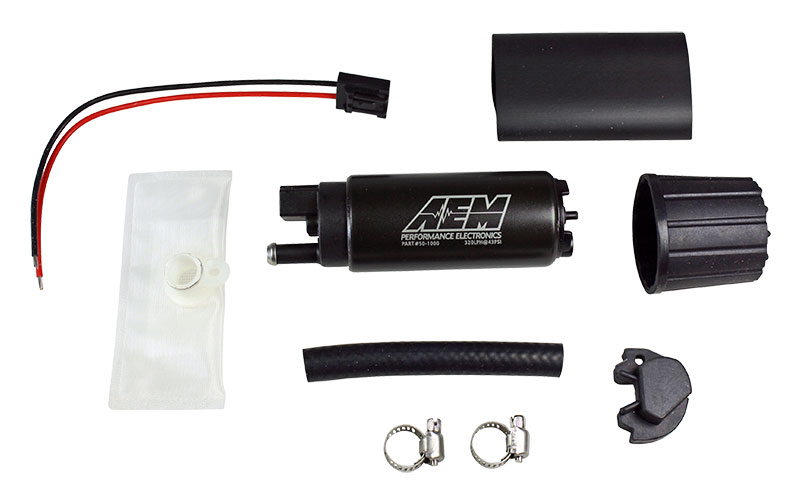

    Kit includes fuel pump, rubber sleeve and end caps, pre filter, hose, clamps and flying lead

TECHNICAL SPECS:

Weight: 10.1oz (285grams)

Outside Diameter: 39mm OD

External Materials: Black plated steel with laser etching

Inlet Fitting: 7.7mm ID, 11.0mm OD

Outlet Fitting: 8 mm hose clamp

PRV Activation: 80 PSI

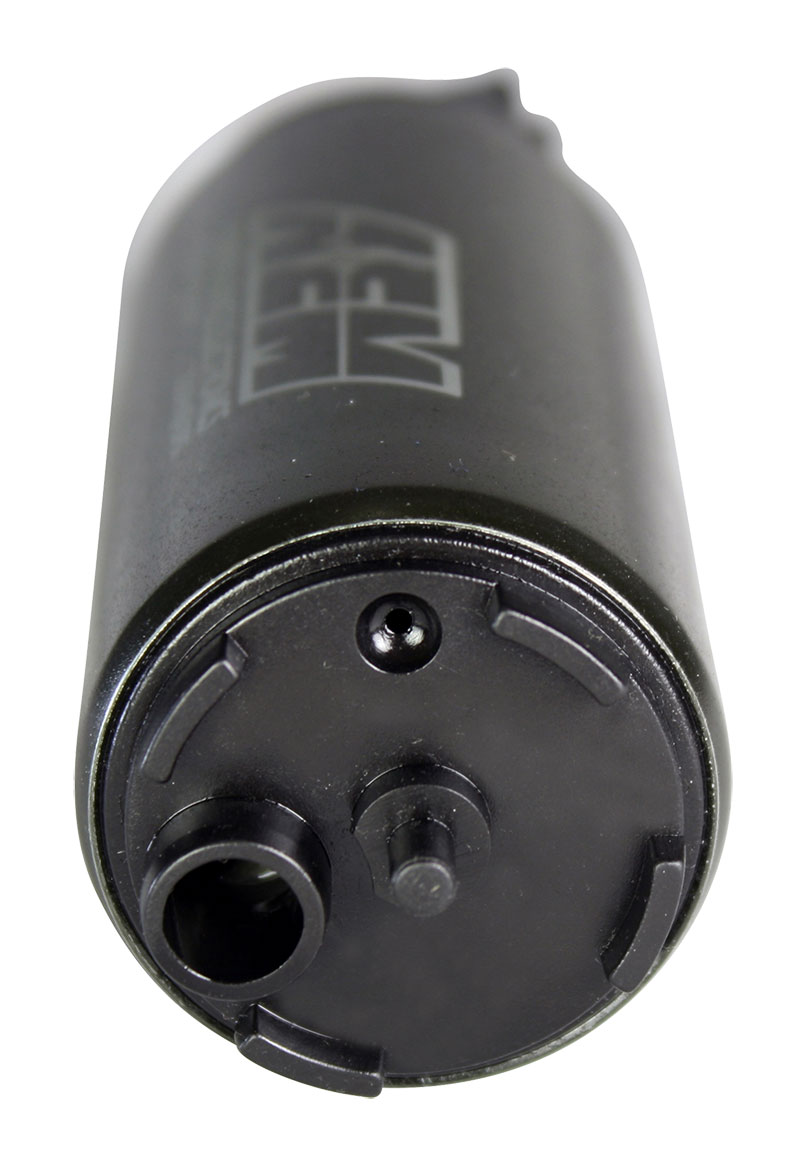

Impeller Design: Single Scroll Hard Anodized Aluminum Turbine

VOLTAGE SPECS:

Connector Terminal: 6 mm Spade (pos/neg)

Min Voltage Input: 6 volts

Max Voltage Input: 18 volts

Current Draw (40 psi): 12 amps (13.5v)

Current Draw (80 psi): 15 amps (13.5v)

* Power rating given at 43 PSI, 13.5v at the pump with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
