FLK-C56-LS37NR - 2005-2007 C6 L2/LS3/LS7 Corvette, Lines, Fittings, Regulator, DIY Kit
This is a complete do-it-yourself fuel line kit for the 2005 to 2007 C5 LS2 Corvette. This kit replaces all the factory lines from the fuel module assembly up to the fuel rails. For use with Racetronix 'R' series Corvette fuel pump modules only. NO FUEL RAILS.
INCLUDES:
Racetronix billet fuel pressure regulator
Racetronix liquid-filled fuel pressure gauge
Factory regulator blockoff
-8 Stainless Steel braided feed hose with black conductive coating
-6 Stainless Steel braided return hose with black conductive coating
Aluminum Black Anodized Reusable Fittings
The lines in this kit are stainless steel braid over Teflon. The SS braid offers great durability and a conductive path to dissipate static buildup caused by flowing fuel. The Teflon core is compatible with all fuels such as E-85 and oxygenated race fuels where rubber hose is not and will break down and crack over time. Teflon hose has a lower friction coefficient than rubber hose so it will flow better given the same inner diameter. Teflon has very low permeability so it will not allow vapors to escape like rubber hose so you can say goodbye to that constant smell of gas fumes in your garage. After much flow testing we have found that a -8 feed and -6 return line provide more than enough flow capacity to support our dual in-tank fuel systems at flow rates in excess of 740LPH.
This is a DIY kit which doesn't come with instructions. Customers should have a thorough knowledge of their fuel system, the proper tools and technical qualifications to assemble this kit. Know your ability or seek qualified help. We do not take returns on installed parts.
PTFE (Teflon) Hose Fittings - 90° ORB
FIT-689708 - Fitting, PTFE 90° -8 ORB Male Swivel, BK (Qty:3)
AN JIC Male » ORB Adapters - 90°

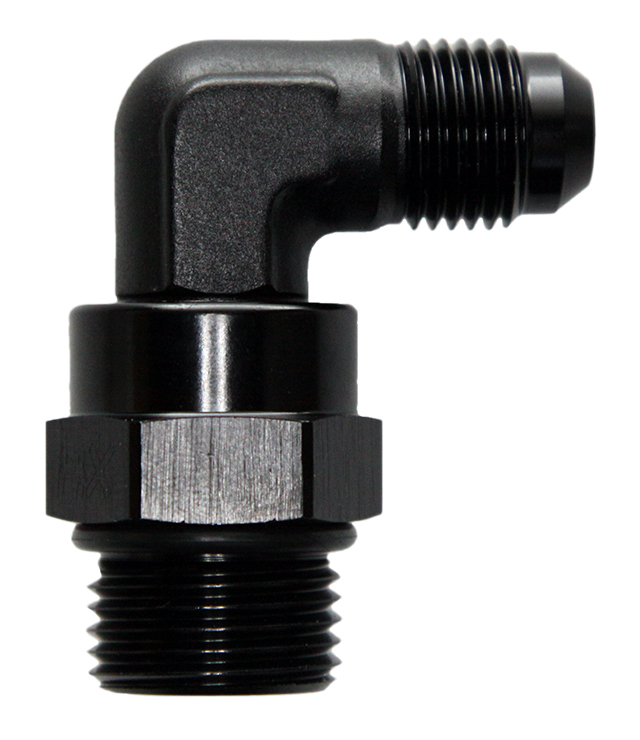

ADF-499268 - Adapter, 90° -8 ORBM » -6 ANM AL BK (Qty:1)
PTFE (Teflon) Hose Fittings - Straight
FIT-680106 - Fitting, PTFE -6AN Female - BLACK (Qty:1)
TEFLON HOSE FITTINGS - QUICK DISCONNECT
FIT-P8QDM38 - Fitting, PTFE -8 » QD 3/8 Male, BLACK (Qty:1)
PTFE (Teflon) Hose Fittings - Straight
FIT-680106 - Fitting, PTFE -6AN Female - BLACK (Qty:1)
Regulators - Fuel Injection
REG-FI886BS - Regulator, EFI -8 / -6 E85, BLACK/SILVER (Qty:1)
Gauges
FPG-RTB00100 - Gauge, 100PSI, 1.5" Liquid, YLW/BLK-RX (Qty:1)
TEFLON HOSE FITTINGS - STRAIGHT ORB
FIT-680706 - Fitting, PTFE -6 ORB Male - BLACK (Qty:1)
AN JIC Male » ORB Adapters
ADF-495101 - Adapter, -8 ORB Male » -6 AN Male AL BK (Qty:1)
PTFE (Teflon) Hose Fittings - Straight
FIT-680106 - Fitting, PTFE -6AN Female - BLACK (Qty:1)
Plugs - AN ORB (Socket Cap)
FIT-481308 - Plug, ORB -8, Slim Allen, AL-BK (Qty:1)
Racetronix PTFE (Teflon) Hose
TFT1170-06B - -6 Hose, Teflon, Conductive, SS BLACK (Qty:15)
TFT1170-08B - -8 Hose, Teflon, Conductive, SS BLACK (Qty:15)
Fuel Pump Module Parts
REG-BLOCK02 - Regulator Blockoff/Plug LS1/6/2/3/7 PS R (Qty:1) |
