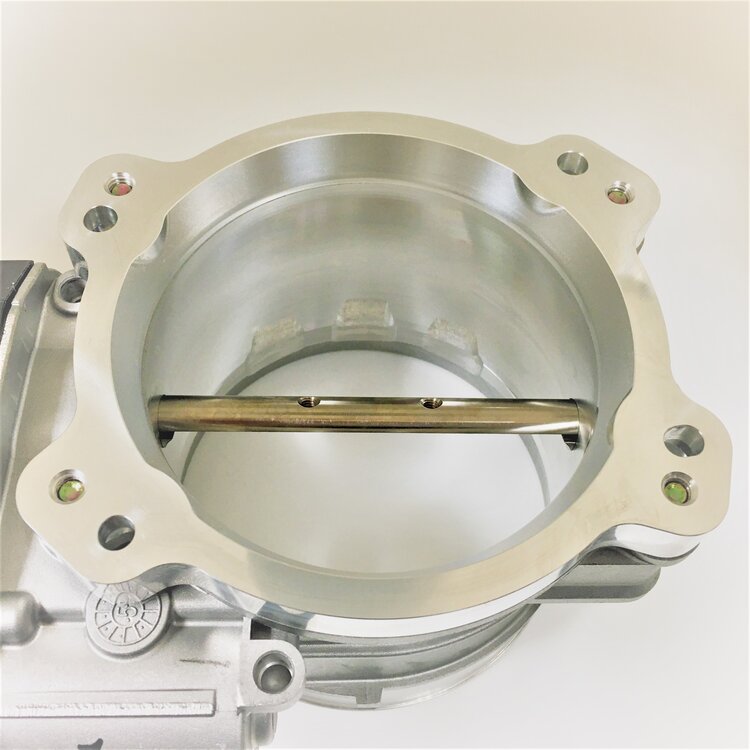

Adapter 95 mm TB to 103 mm LT5 TB to MSD 103 mm Manifold

Features:

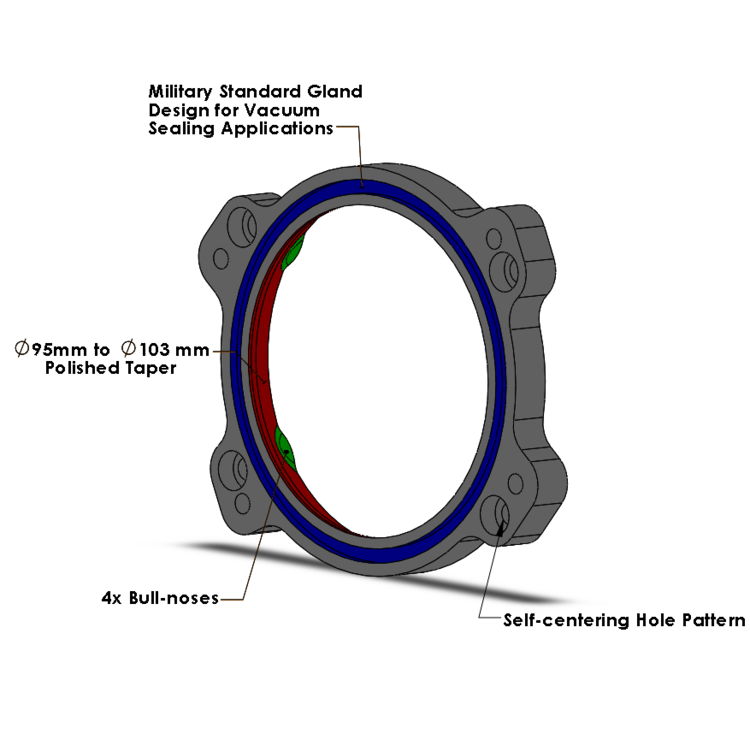

• Self-centering OEM Screw Pattern Design

• Efficient Tapered Transition (No steps) with Bull-noses over Screw Locations

• Military/Aerospace Sealing Gland Design

• Low Compression Set Silicone Seal

• Durable Corrosion Resistant Hardware

Benefits:

• Hole pattern ensures throttle body, Adapter, and Manifold bores are concentric. Edge to edge, no steps due to mismatches. All clearance hole patterns adapters allow centerline shifts and bore mismatch.

• Transitional taper; ensures that there are no steps on the flow path and minimizes pressure losses/drops to manifold. Straight bore Adapters transitions are abrupt and drop manifold pressure.

• Bull-noses catch the MSD seal only where needed and allow air to flow smoothly over screw locations while matching the contour of the MSD snout all around the flow path.

• Proper sealing gland design and Low Compression set Silicone Seal ensure durability and proper function of the seal. Excessive O-Ring squeeze is conducive to O-Ring compression set and loss of sealing performance over time.
