C6 Corvette and others LSXR¦Rectangle Port Heads (LS3, L99, L76)

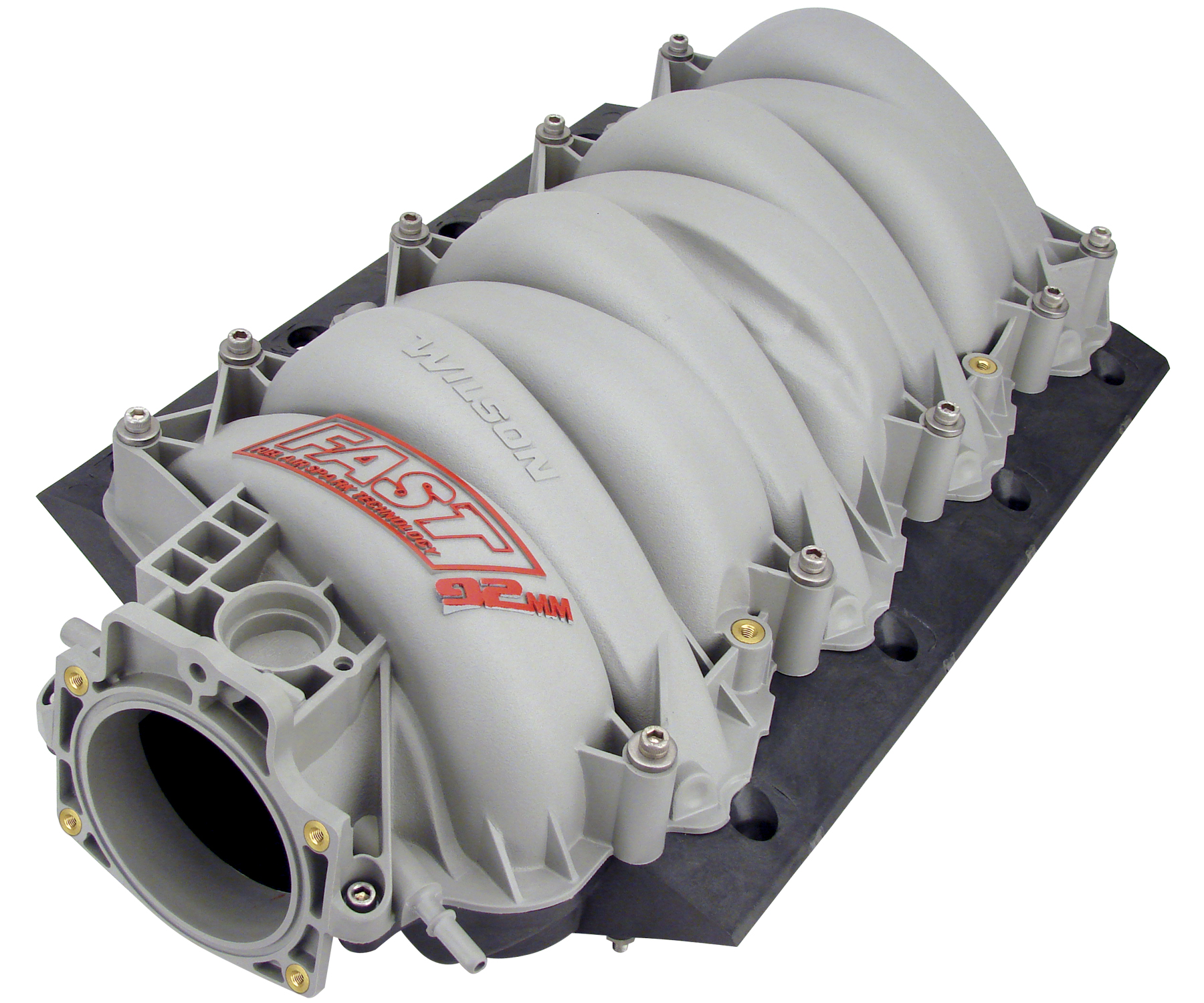

FAST™ engineers teamed up with airflow specialists at RHS® to develop polymer intake manifolds for GM LS based engines. Testing on a near stock LS7 engine with a Big Mouth 102mm Throttle Body™ produced gains of 16+ horsepower, and 26+ rear wheel horsepower on a 500c.i. engine. The LSXR™ 102mm Intake Manifold features a revolutionary new modular design that allows fast and easy disassembly and features the ability to remove individual runners for porting.
Constructed from the same advanced polymer material as the original FAST™ LSX™ 92mm Intake Manifold, the LSXR™ offers a host of benefits over aluminum aftermarket intakes, including lighter weight, increased strength and improved heat dissipating characteristics. While the LSXR™ features a 102mm air inlet that is perfectly suited to the FAST™ Big Mouth 102mm Throttle Body™. Other features include integrated nitrous bungs and perfect bolt-on fitment that allows the use of factory accessories without modification or clearance concerns.
Testing shows that a near stock LS7 engine (w/ FAST® 102mm Intake & Throttle Body) produced gains of 16+ horsepower; a 500cid LS based engine gained 26+ rear wheel horsepower
Modular design allows fast & easy disassembly & features the ability to remove individual runners for porting
Constructed from advanced polymer material that offers a host of benefits over aluminum aftermarket intakes, including lighter weight, increased strength & improved heat dissipating characteristics
102mm air inlet that is perfectly suited to FAST™ Big Mouth / Big Mouth LT Throttle Bodies
Integrated nitrous bungs & a precise bolt-on fit that permits the use of factory accessories & OEM fuel/emission connections w/o adjustments or clearance issues
50 State Legal Under C.A.R.B. E.O. #D-279-9
'08-'13 Corvette
'06-'13 Corvette Z06
'10-'14 Camaro w/ 6.2L
'14 Chevrolet SS
'09 Pontiac G8 GXP
'08-'09 Pontiac G8 GT
'95 & Older w/ Retro-Fit GM E-Rod 6.2L
THROTTLE BODY OPTIONS
FAST™ Big Mouth Throttle Body (Drive-by-Cable)
OEM/Stock 4-Bolt* Throttle Body (Drive-by-Wire)
FUEL RAIL OPTIONS
FAST™ Anodized Billet Fuel Rail Kit
OEM/Stock Fuel Rails w/ FAST™ Adaptor Kit
*Can also be used with OEM 3-bolt throttle bodies (in applications where rectangle port heads have been retro-fitted) with FAST™ Adaptor Plate.
|
