1,500hp Ultra Low Profile Billet Air-to-Water Intercooler and GM Holley Ram
![]()
With our Air-to-Water Intercooler being a top seller it only made sense to offer it as a discounted combo package. This makes it easier for you to select which Holley Hi Ram, Mid Rise, or Lo Ram Manifold you want to run on your setup.
This new design provides an even lower height while retaining up to 1,500hp rating. Along with improved -12 angled inlets, that now clear taller fuel rails.

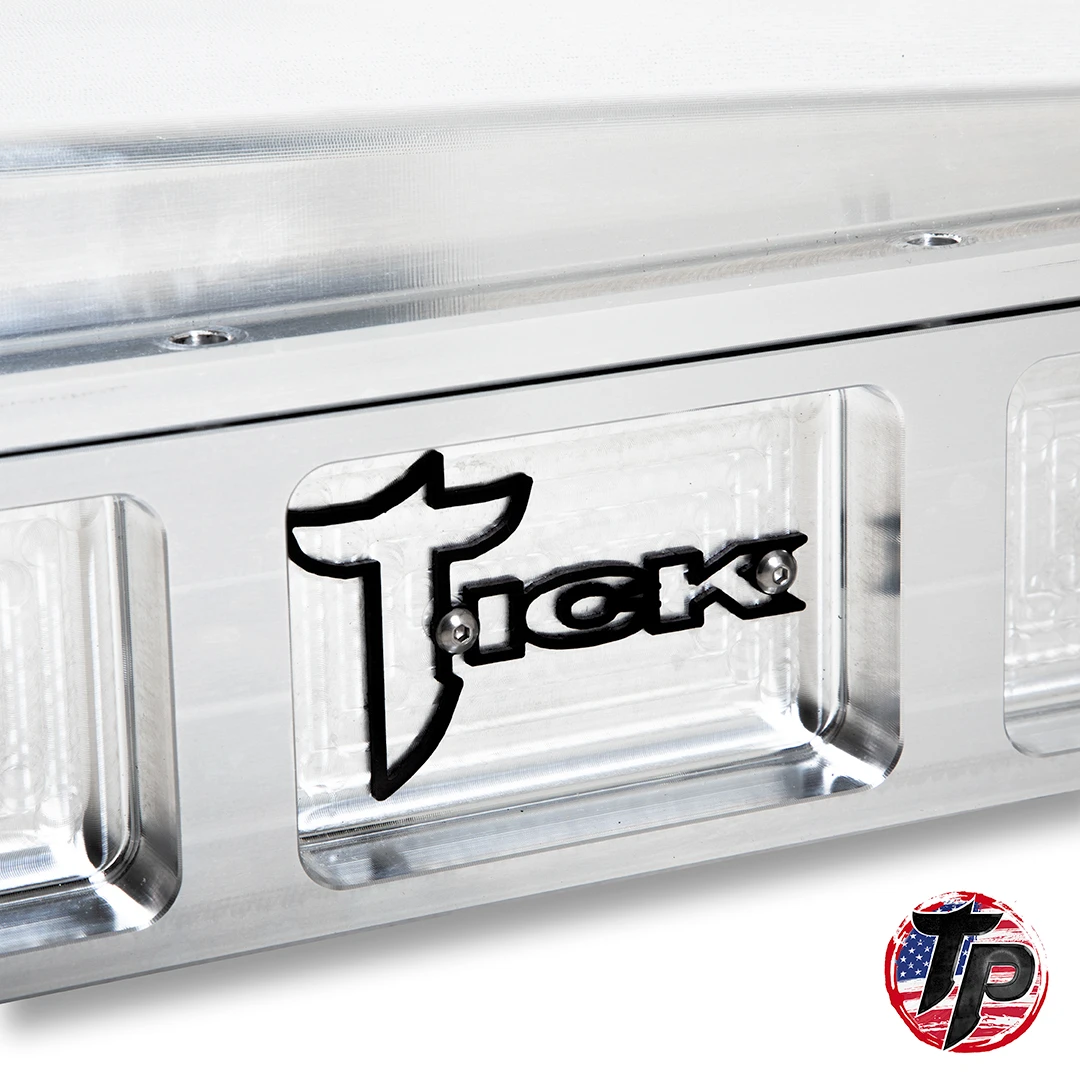

Manufactured in North Carolina, USA here at Tick Performance, our Billet Air-to-Water Intercooler gives you all the benefits of an A2W intercooler without the hassle of extra plumbing! This custom fabricated intercooler bolts directly to any Holley Hi-Ram, Lo Ram, or Mid-Ram Intake Manifold and can efficiently support up to 1,500 Horsepower!
The new billet design offers a superior quality and appearance without an increase in price. The intercooler features four -12ORB (AN) Female inlet/outlets providing you with options on plumbing. See the drop-down menu for block-off plugs.
Specs
-
Supports up to 1,500HP
-
100% made and hand assembled in North Carolina, USA
-
4 Female -12 AN O-ring female inlet/outlets
-
Billet 6061-T6 aluminum construction
-
Additional discount available for purchasing a Holley Manifold at the same time! Contact us for details.
Includes
-
High quality mounting hardware
-
O-ring sealing
-
Integrated upper intake manifold
-
LS Style Throttle body Outlet
Overall Heights
-
Overall Thickness 4.75 in
-
Holley LS1 Lo-Ram Total Without Intercooler 5.17 in
Combo Heights
-
Holley LS1 Lo-Ram Lower Intake With Intercooler 9.92 in
-
Holley LS Hi-Ram Lower Intake With Intercooler 13.17 in
Measurements are based on the specs provided by Holley and include the tallest point of the intakes using the front-mount throttle body hats. The intercoolers will work with any Holley ram hat.
Please don't hesitate to contact our sales consultants with any questions you may have!
See Dyno Testing Here; 100hp Gains!
***Please note that we do not recommend coating our intercooler with any form of coating that requires high temperature curing.***
***Will NOT Fit Holley Mid Ram Manifolds***
***The Gen V LT Low Ram does require the lower portion to be machined to clear our intercooler. Please see picture below. ***
![]()
***Please note that we do not recommend coating our intercooler with any form of coating that requires high temperature curing.***
Looking For A Water Pump? Check out our recommended pump and completion kits.
Holley Lo-Ram Intake Manifold Base for LS1/LS2/LS6 Cathedral Port EFI - Black Finish #300-600BK (+$119.70)
