22-24 1500 Refresh Silverado Fog Light High Beam Override Harness Without trigge

THIS HARNESS IS NOT FOR CUSTOMERS LOOKING TO ADD FOG LIGHTS TO THEIR VEHICLE, IT IS ONLY FOR THOSE THAT ALREADY HAVE FACTORY INSTALLED FOG LIGHTS AND JUST WANT TO MODIFY CURRENT FUNCTION.

  has developed this fog lamp harness which will allow for your fog lamps to remain on when your high beams are on.  Normal function is for them to automatically turn off when the high beams are on and come back on when in low beam mode.  This harness is a plug and play harness that utilizes GM sealed connectors.   For those that have added extra lights to their Silverado and would like them triggered off of the high beam circuit please select the appropriate option and the harness will include an extra high beam and ground trigger wire.

IF YOU NEED TO ADD FOG LIGHTS TO YOUR VEHICLE PLEASE SEE PART # 250850

Product Fitment:

• 2022-2024 Silverado 1500 Refresh
• Will not fit 2022 limited or 22-24 HD models
• Installation:

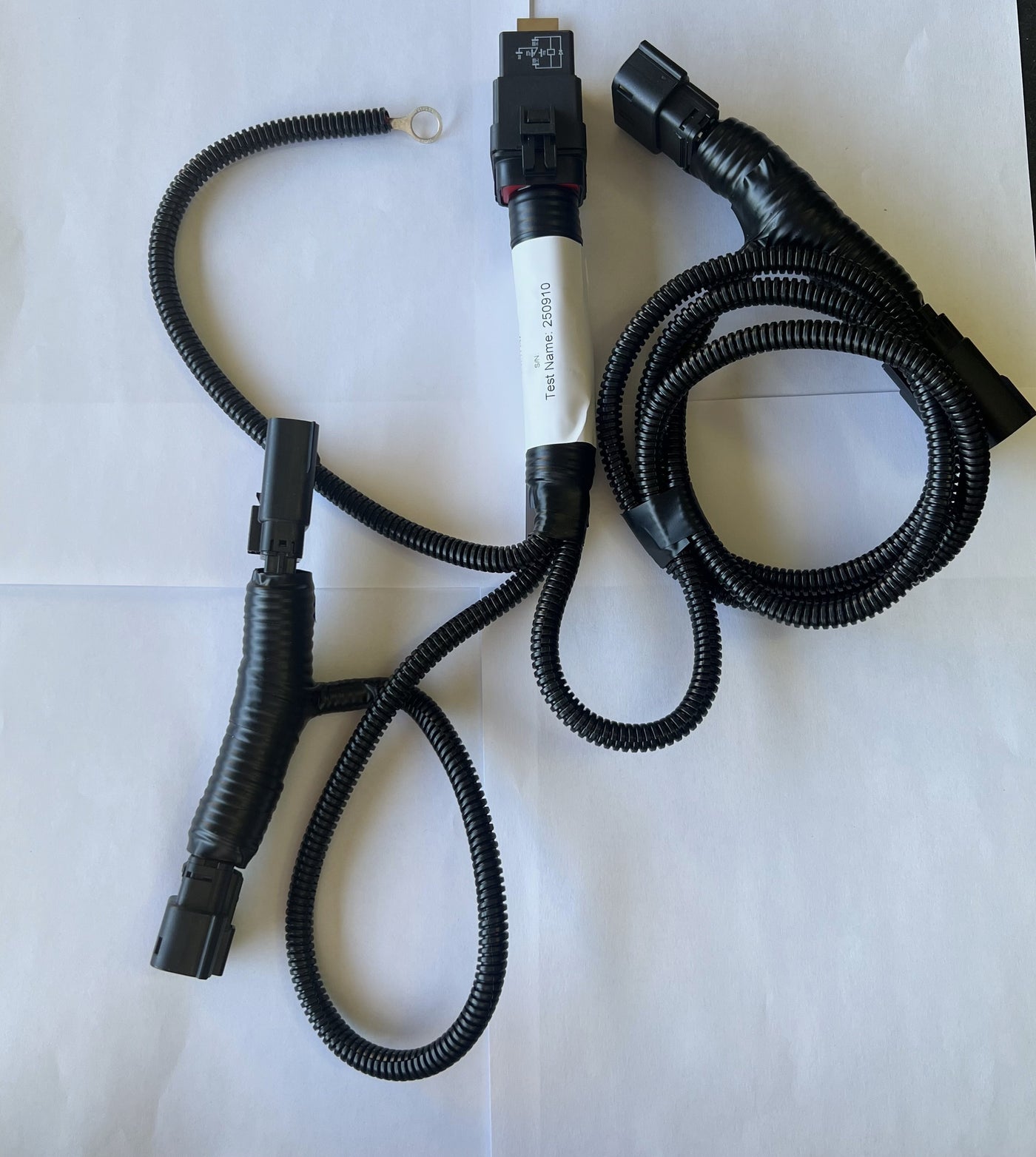

Harness simply plugs inline with the passenger side headlight main connector and the other part of the connector connects inline at the body to bumper harness, which is located right above the passenger side fog light assembly.   Relay can be mounted to a suitable location under the hood, you want to make sure it is mounted to a location where it will not get constant exposure to water and please mount with the wires facing downwards to prevent any water from possibly entering the relay assembly.  The ring terminal wire connects to battery positive.
