RaceBox 10Hz GPS Official Based Performance Meter Box with Mobile App - Car Lap Timer and Drag Meter - Racing Accelerometer Data Logger

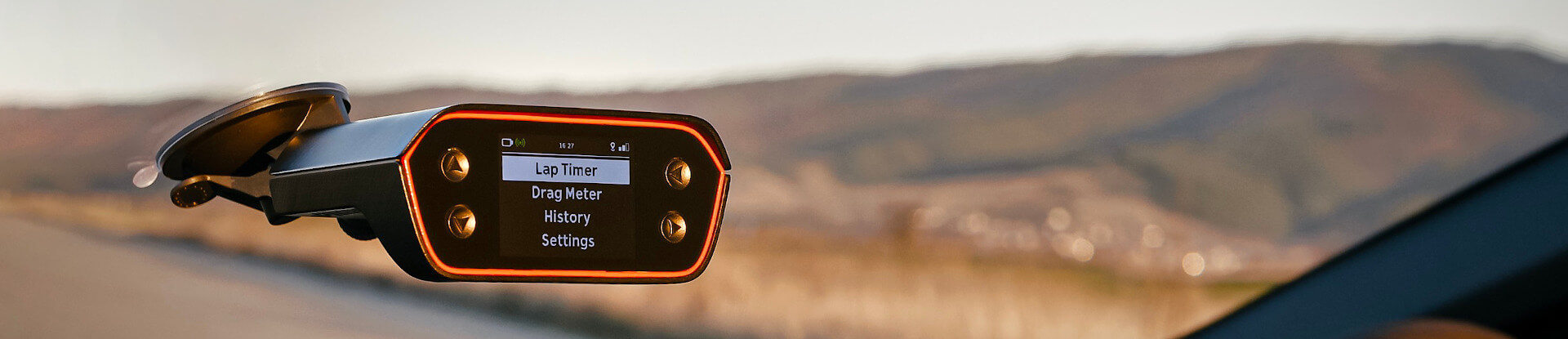

The most advanced measuring device in a completely standalone form. You don't need anything more than what comes in the package. Unbox it, mount it and enjoy the complete experience right away.
If you are the occasional track-day enthusiast, a semi-professional or just want to see how fast you can go around the track, we've got you covered. The "Lap Timer" functionality will allow you to measure your laps and improve your skills without ever having to stop and check your results.
The "Drag Meter" functionality presents you with virtually unlimited possibilities to measure all of your car's performance stats. No matter if you want to see how fast it accelerates, covers a certain distance or anything in between, you can measure it with RaceBox.
The RaceBox is completely standalone unit. It can be used without a smartphone connection at all. Setup your drag disciplines or even define your own tracks right on the unit itself.
Know your results in advance with our Predictive feature. Available for both Drag Meter distance runs and Lap Timer on any track. The device will study your driving and display estimates of your lap or drag run time before you have finished.
All of this is stored as sessions internally in the device memory - you can always go back and analyze everything later. All you need to do is just go to the "History" menu and all the information is there - sorted for you by type, date, track and sessions. No need for SD cards.
And the best thing is all the functionality does not stop here. We have many more features planned in mind that thanks to the design of our hardware and software will be released as free updates down the road.
- Weight (including suction cup): 260 grams (9.2 oz.)
- Memory capacity: 256 drag sessions with up to 100 runs each, 128 track sessions with up to 100 laps each, 64 tracks with up to 7 configurations each, up to 5 sectors per configuration; Over 8 hours total driving time; Single track predictive mode reference lap, single drag predictive mode reference run.
- Battery: integrated 2500 mAh LiPo
- Recommended charger: 2A USB Type A. Most modern smartphone chargers should work
- Charging port: USB Type C
- Charging time: less than 3 hours to 100% charged
- Usage on battery: up to 8 hours driving with WiFi off, 4 hours with WiFi enabled, 2 hours with WiFi enabled and constantly connected to the app
- External antenna compatibility: Active antenna with standard SMA connector, less than 30mA@3.3V
- Mounting compatibility: Should work with most Go-Pro-compatible mounting kits
- GPS receiver: 10Hz GPS, GLONASS and SBAS, -167dBm sensitivity with built-in 35dB gain antenna
- Accelerometer: 1kHz sampling rate with +/- 4g scale and 0.001g sensitivity
- WiFi: 802.11 b/g/n 2.4GHz, up to 400 meters range, WPA2 encryption
- Display: TFT-LCD, 2.5" 320x240, full color (though we use it mostly with high-contrast black&white interface), adjustable brightness up to 300 cd/m2 and contrast of 500:1
- Environmental compatibility: -20 to 70°C (-4 to 158°F), minimal water protection

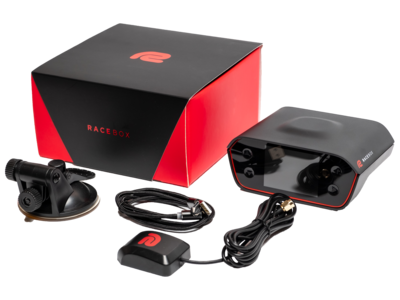

What's in the box
RaceBox comes fully ready to use - minimal assembly required.
- RaceBox main unit
- Adjustable suction cup for mounting on the windshield
- USB-C to USB-A charging cable with quick magnetic release
- External GPS antenna (in case you need one)
- Complementary RaceBox stickers
- Quick-start guide
A wall adapter or car charger is NOT included in the box. Feel free to use any USB 2A charger.
The main unit is compatible with Go-Pro-style mounting adapters.
Drag Meter
Two predefined modes - "Distance" and "Speed" for quick access to standard measurements (which points will change according to your preferred units), and extra "Custom" one for you to configure. Each tracks up to four metrics, such as 0-60mph, 1/4 mile, etc.
The most interesting and powerful "Custom" mode lets you define your own set of points. You will have unlimited combinations of speed, distance points and units at you disposal - measure 60ft, 0-60mph, 400 meters and 100-200kph together, all in one run. No other device currently offers that flexibility.
And let us not forget the so important "1ft rollout" in the drag discipline - you can enable or disable it for all the modes, it’s up to you.
OR
Lap Timer
Load a predefined track with the mobile app from our database - over 2000 race tracks all around the world with splits, start/finish lines, different configuration and more. See the full list here. Or create your own custom track/configuration with as much as 4 split lines.
While driving you will be presented with current lap and lap time for it, your live speed, last and best times and colorful pop-ups for every point that you cross (split, start/finish) with the difference from your best time in the session. All that information is perfectly arranged and balanced so you can glance it without losing sight of your driving line.
Combined with even more features such as our "Predictive Mode" which lets you see just how fast exactly are you at any given point on the circuit and thanks to the unmatched visualization and UI, RaceBox is just a step above the competition.
Predictive
RaceBox studies your driving patterns in both Drag and Track modes and predicts your results on the fly. You will see your straight-line distance results moments after take off and know exactly at which corner you loose time on the track.
Drag Predictive Mode is available for distance runs (e.g. quarter mile or 400m). You will need to complete at least one run to enable it.
Track Predictive Mode is available for any track. You will need to complete at least one full lap to enable it.
History
Lap Timer and Drag Meter sessions are stored separately for easier navigation.
In the Lap Timer History you can quickly see all your laps, max/min speeds, theoretical best laps and more for every session that you've done. Quick navigation, sorted by date, track and configuration.
In the Drag Meter History you can check every single run separately with all its points in every single session. A summarized view with the best points from all the runs in a session is shown as well. Again - sorted by date, time, number of the session and so on, just as in the Lap Timer History menu.
Export
The RaceBox Mobile App backs all data to our private cloud. It is then accessible via our website for download. You can log in and export it in CSV and VBO formats compatible with popular sofware solutions for video overlaying or in-depth analysis.
RaceBox Mobile App
Explore the full potential of RaceBox products with our purpose-built app, delivering outstanding feature set. Available for iOS 12+ and Android 9+. Take a look at just a few of the features below.
Track Analysis
For the Lap Timer sessions, you can see all the info you need to become a faster and better driver. Check all your laps in every single session lap by lap with speed and g-force graphs, racing lines, sector times, and so on. You can even compare two laps to identify different ways to improve yourself.
slide 5 to 7 of 7
Easily check your lap in greater detail by seeing your max g-forces, sector times, and more.
Check the exact angle at which your bike is leaned in the corners.
Analyse your driving line over the RaceBox Map or on Google Maps.
Optimize your handling with the G-G Plot.
See information like speed, acceleration G-forces, and cornering G-forces at any point of the track.
The session overview page is where you can see data like cornering G-forces, min/max speed, and all of your lap times.
Compare the speed, g-forces, or timing difference between two different laps and see exactly were you are gaining or losing time.
Easily check your lap in greater detail by seeing your max g-forces, sector times, and more.
Check the exact angle at which your bike is leaned in the corners.
Analyse your driving line over the RaceBox Map or on Google Maps.
Optimize your handling with the G-G Plot.
See information like speed, acceleration G-forces, and cornering G-forces at any point of the track.
The session overview page is where you can see data like cornering G-forces, min/max speed, and all of your lap times.
Compare the speed, g-forces, or timing difference between two different laps and see exactly were you are gaining or losing time.
Easily check your lap in greater detail by seeing your max g-forces, sector times, and more.
Drag Analysis
In the Drag Meter sessions, you can check everything within greater detail as well. You can dig in every single session and analyze the measurements of every single point. Detailed speed and g-force graphs help you analyze your car’s performance and you can easily check where you can optimize your time by comparing two runs.
slide 7 to 9 of 4
See more detailed information about every set point with DA and weather information and break down of intermediate points.
All results, grouped by runs or set points.
Overview of your drag session, where you can see your best times of different disciplines and info for all of your runs made during this session.
Drag session analysis with slope corrected time, detailed graphs, data comparison, altitude, and more.
See more detailed information about every set point with DA and weather information and break down of intermediate points.
All results, grouped by runs or set points.
Overview of your drag session, where you can see your best times of different disciplines and info for all of your runs made during this session.
Drag session analysis with slope corrected time, detailed graphs, data comparison, altitude, and more.
See more detailed information about every set point with DA and weather information and break down of intermediate points.
All results, grouped by runs or set points.
Overview of your drag session, where you can see your best times of different disciplines and info for all of your runs made during this session.
Drag session analysis with slope corrected time, detailed graphs, data comparison, altitude, and more.
See more detailed information about every set point with DA and weather information and break down of intermediate points.
All results, grouped by runs or set points.
Overview of your drag session, where you can see your best times of different disciplines and info for all of your runs made during this session.
Drag session analysis with slope corrected time, detailed graphs, data comparison, altitude, and more.
Sharing
Send your custom tracks and sessions to your friends. Compare an analyse your results together
Mini Live Lap Timer
When the Lap Timer mode is entered, you’re presented with a nice, big, and easily readable UI, giving you all the needed information with just a glimpse of an eye. See your lap, sector, and predicted times, how faster or slower you’re on your current lap, and more without losing focus from your perfect racing line.
|
