05-10 4.6L 3V Mustang GT Hard-line Plate System Gas/E85 5-55psi 50-200 HP 15lb B

Gain up to 200 HP. This wet nitrous plate system comes out of the box ready to spray up to 200 HP but is capable flowing up to 400 HP with additional jetting.

Superior Atomization.This injection plate has 6 specially designed nitrous and fuel discharge ports that completely saturate the air intake charge for the best atomized mixture possible.

For higher horsepower levels proper distribution into the air stream is critical for equal cylinder to cylinder distribution.

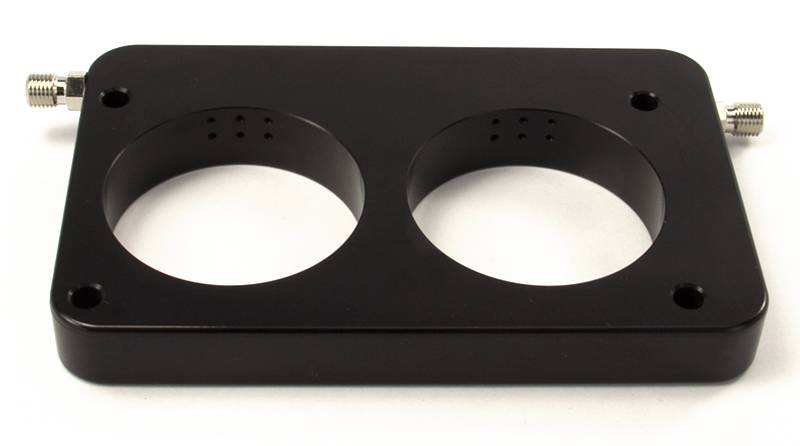

Wet Nitrous Plate.This system includes a billet aluminum plate to fit 05-10 Mustang GT 3 valve intakes and is capable of flowing up to 400 HP of nitrous. Each billet plate has a black anodized finish with engraved logo and fuel/nitrous labels.

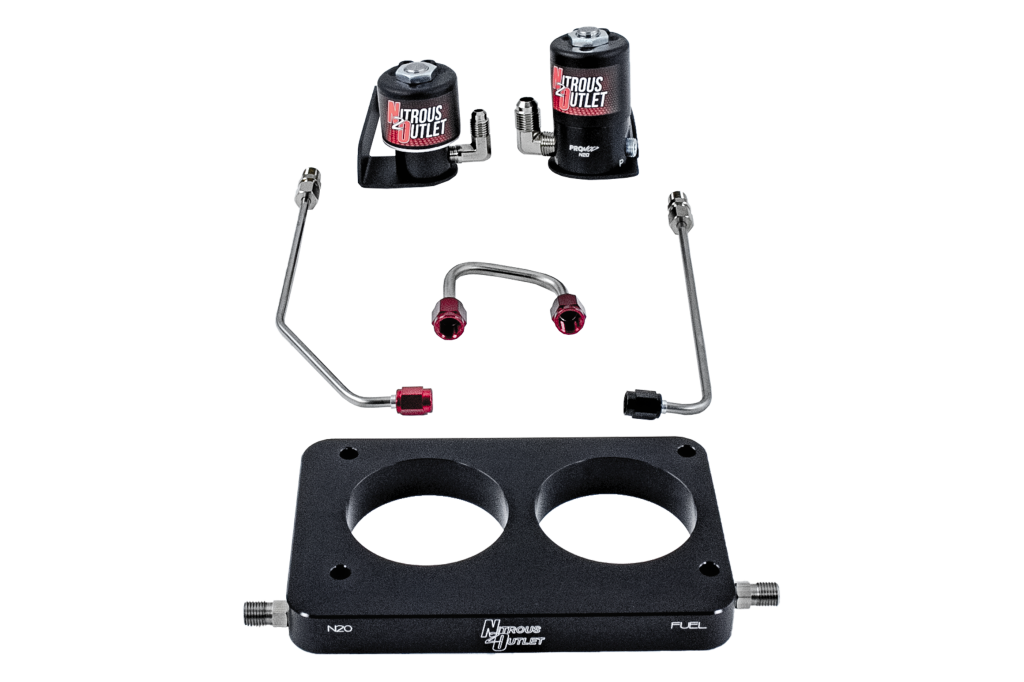

Complete Soft Line System.This system includes all of the necessary components such as the billet aluminum nitrous plate, Ford fuel rail adapter, jetting, hardware and wiring to properly install a wet nitrous plate system on your vehicle.

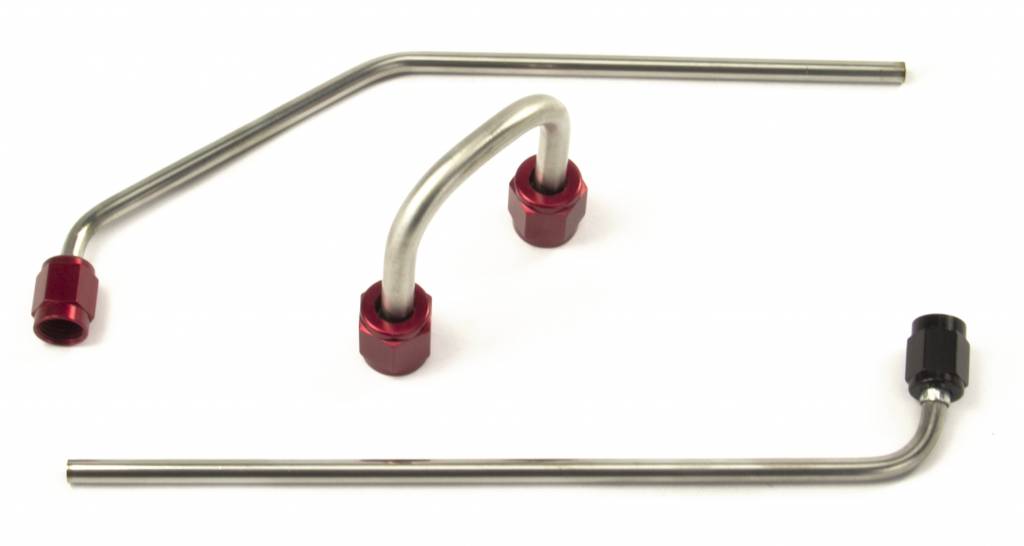

This is a soft line system meaning it has braided stainless hose connecting the solenoids to the plate.

System Activation.We recommend using our WinMax or ProMax controllers to allow for TPS and RPM based system activation. However, this system includes a wide open throttle (WOT) switch that only allows the system to be activated when the motor is at full throttle. The WOT switch can be placed at the accelerator pedal and adjusted for wide open throttle engagement.

Application.This system is specifically designed to fit 2005-2010 4.6L 3 valve V8 Mustang.

The throttle body plate will fit:

• Stock Intake Manifold and Throttle Body
• Stock Intake Manifold and 62mm BBK or Ford Racing Throttle Body
• Ford Racing Intake and Stock Throttle Body
• Ford Racing Intake and and 62mm BBK or Ford Racing Throttle Body
• Holley Sniper Intake and and Stock Throttle Body
• Holley Sniper Intake and 62mm BBK or Ford Racing Throttle Body

Details:

• Ford 2005-2010 Mustang GT Hardline Plate System
• 15Lb Bottle
• Max Flow 400+HP
• 400+HP Solenoids
• Twin 62mm Black Anodized Billet Aluminum Plate
• Fits 3V Mustang GT Intakes
• Includes All Hardware, Electrical, and Jetting
• E85 Compatible With Different Jetting
• Includes Jetting For 50-100-150-200 HP
