S1 Switchback Module Pair Diode Dynamics

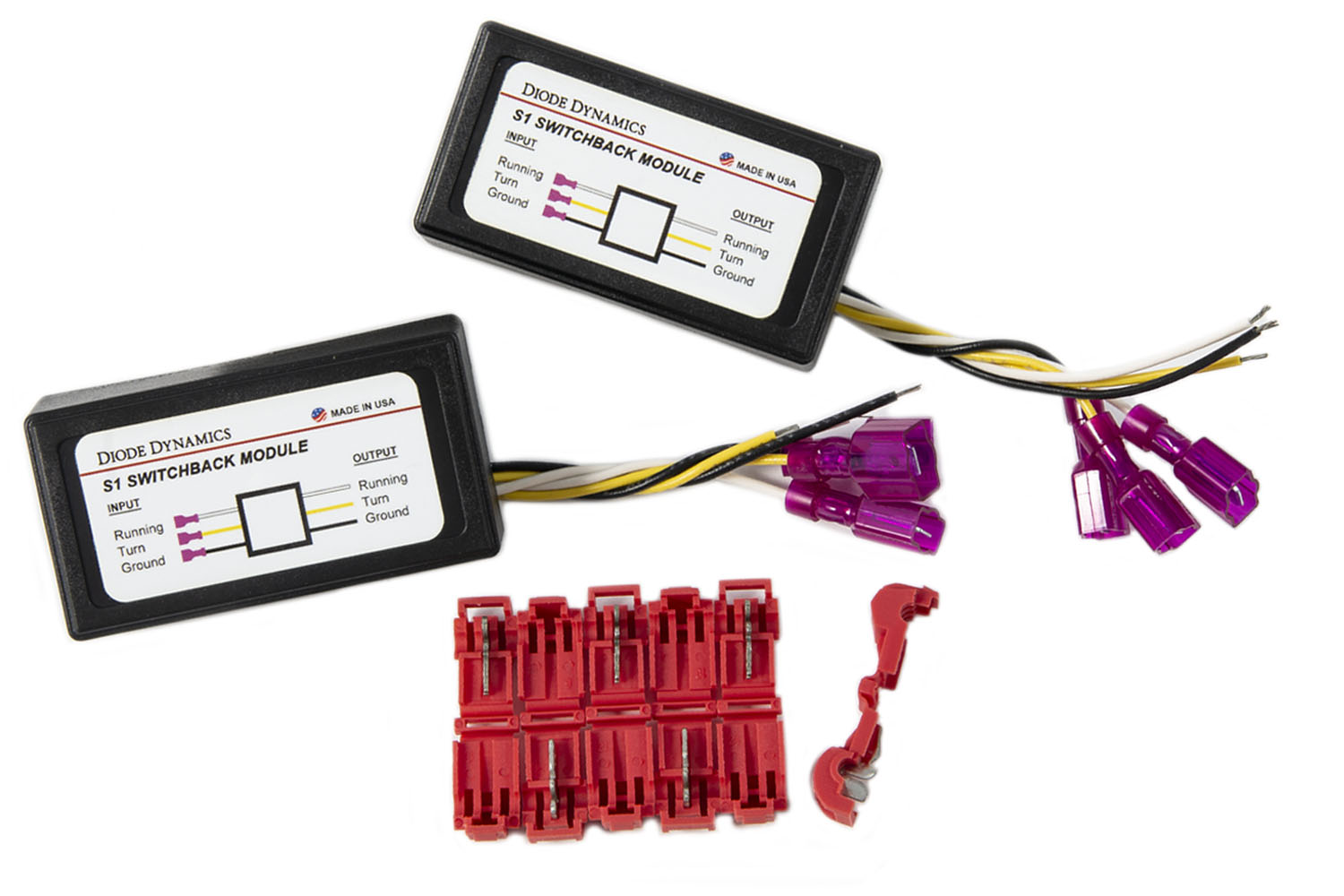

S1 Switchback Module Pair Diode Dynamics
$24.95
Qty:

Add to Wish List

This is a 12V LED switchback controller in a waterproof, low-cost package!

With an input range of 9-16V and common ground, it is perfect for any automotive application. It can be used for turn signal applications, DRLs, and more! Perfect for the retrofitter or DIY'er looking to create an OEM-style function with a few 12V LEDs.
Input
All input wires are male spade connectors with T-taps for installation. There are three wires for input: black, yellow, and white.

  • Black: Ground wire which should be connected to a constant chassis ground.
  • White: Static wire or running light input.
  • Yellow: Turn signal input. This will also shut off the static output, so it could be treated as a shutoff wire for DRL applications.

Output
All output wires are bare leads for connection to LEDs. There are three wires for output: black, yellow, and white.

  • Black: Extra ground output. This does not need to be connected as it is an extra ground point. You can connect LEDs to ground here, or anywhere on the chassis.
  • White: Static output. When power is applied to Static, and the turn signal is not activated, it will output 12V of power. For example, you might connect this to a white light to act as a running light.
  • Yellow: Turn signal output. You might connect this to an amber or red LED to become a turn signal. The static output will shut off, switchback style, while the turn signal is running. If you are using the Turn Wire as a shutoff, just leave this wire disconnected.

Features

  • Waterproof and shockproof, with full encapsulation
  • A maximum current of 2 amps on the white channel, and 3 amps on the amber channel
  • Designed and assembled in the USA by Diode Dynamics Manufacturing

What's Included

  • Quantity: Two (2)
  • Warranty: 3 year warranty
  • 100 percent Satisfaction Guarantee

Specifications

  • Operating Voltage: 9-16V
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • Intrusion Ratings: IP68 Waterproof
  • Weight (lb): 0.1250

YouTube Video Link: https://youtu.be/LQjj7IyFOKk

Suggested Fitments:

This product was added to our catalog on Wednesday 14 July, 2021.
